Description

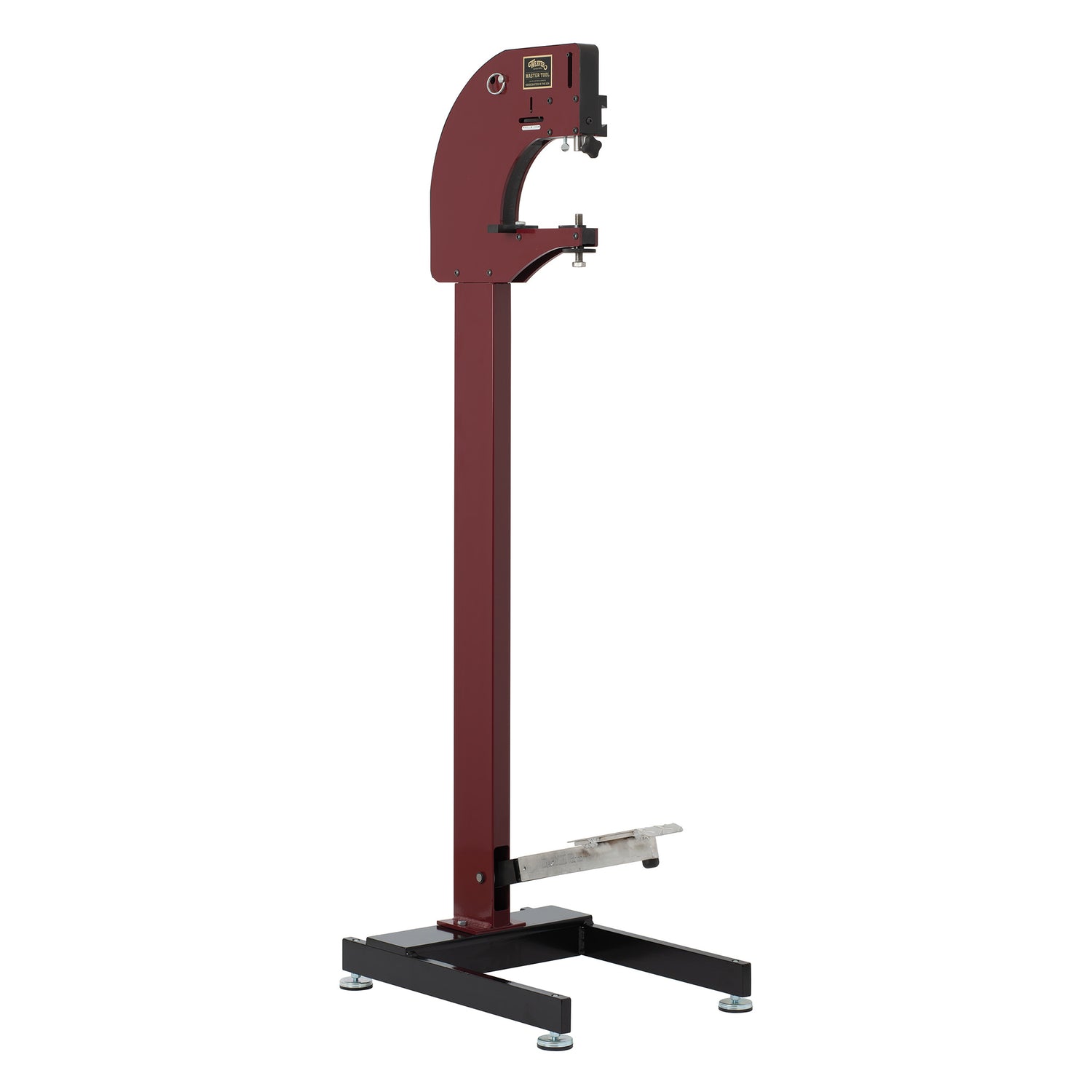

- Easy to assemble and operate, this Weaver Leather Supply exclusive foot press performs 14 functions, making it a versatile workhorse in your shop
- This one affordably-priced machine replaces 6-8 machines so you get the most bang for your machinery buck!

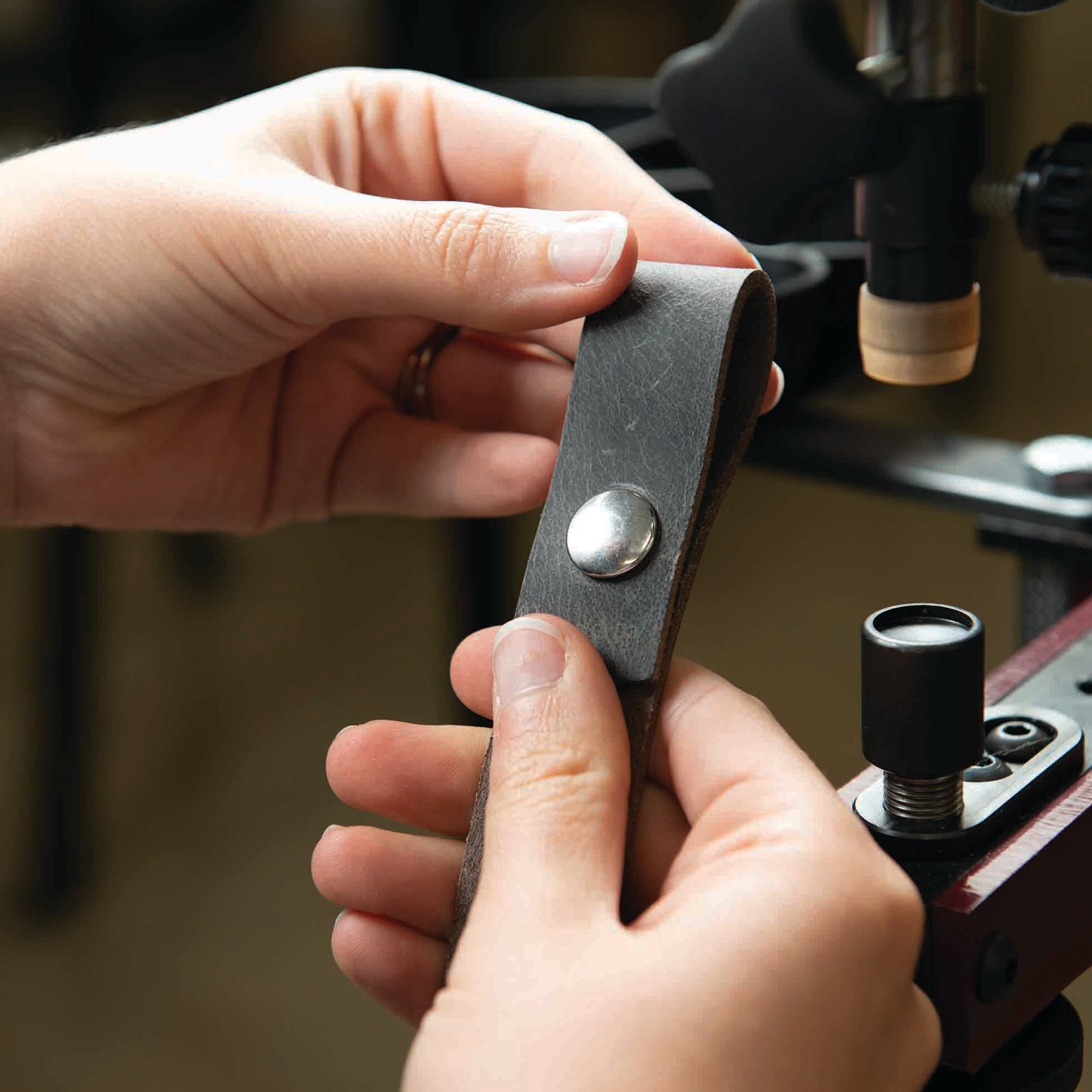

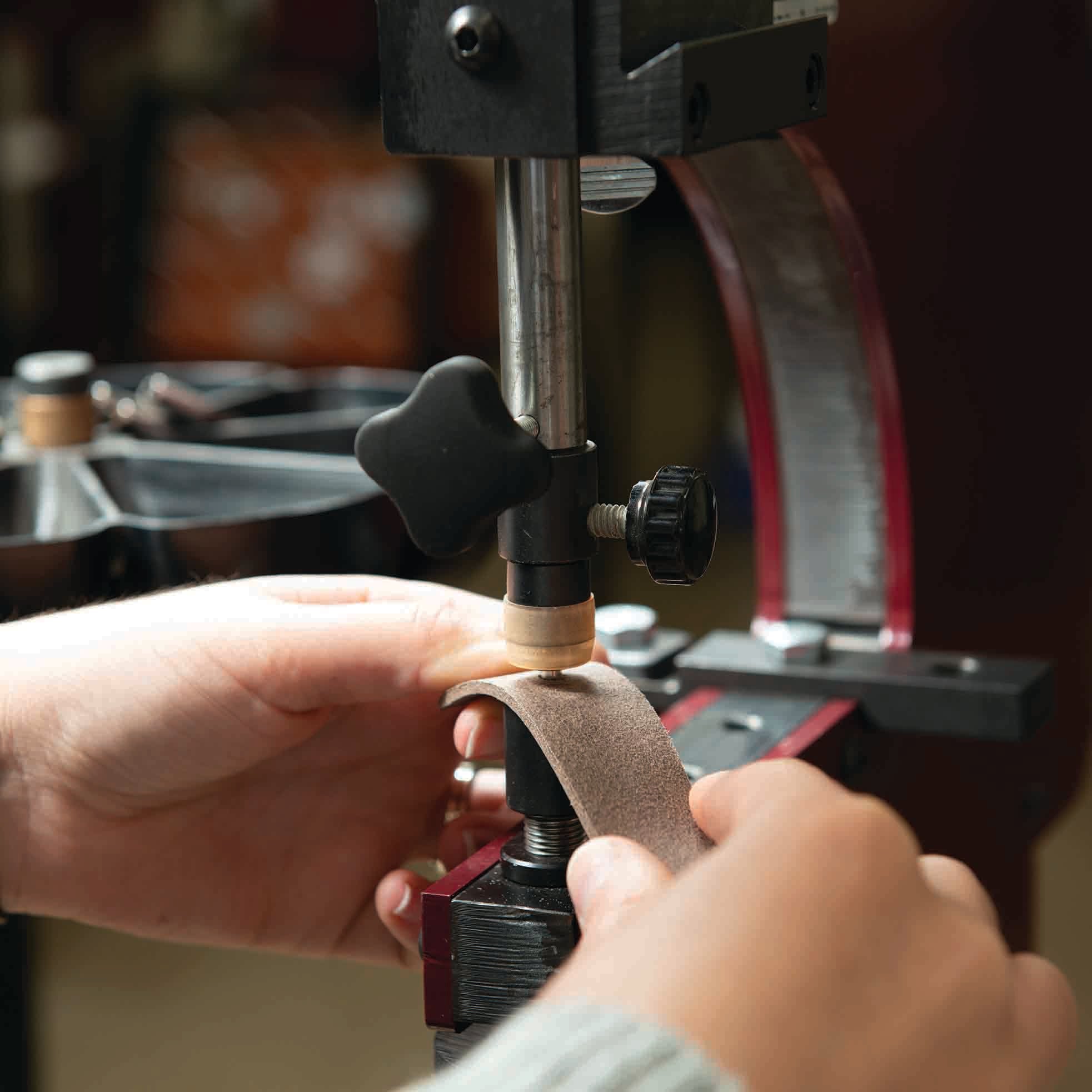

- This compact machine is a pro at setting rivets, spots, snaps, crystals and more boosting your productivity on every project

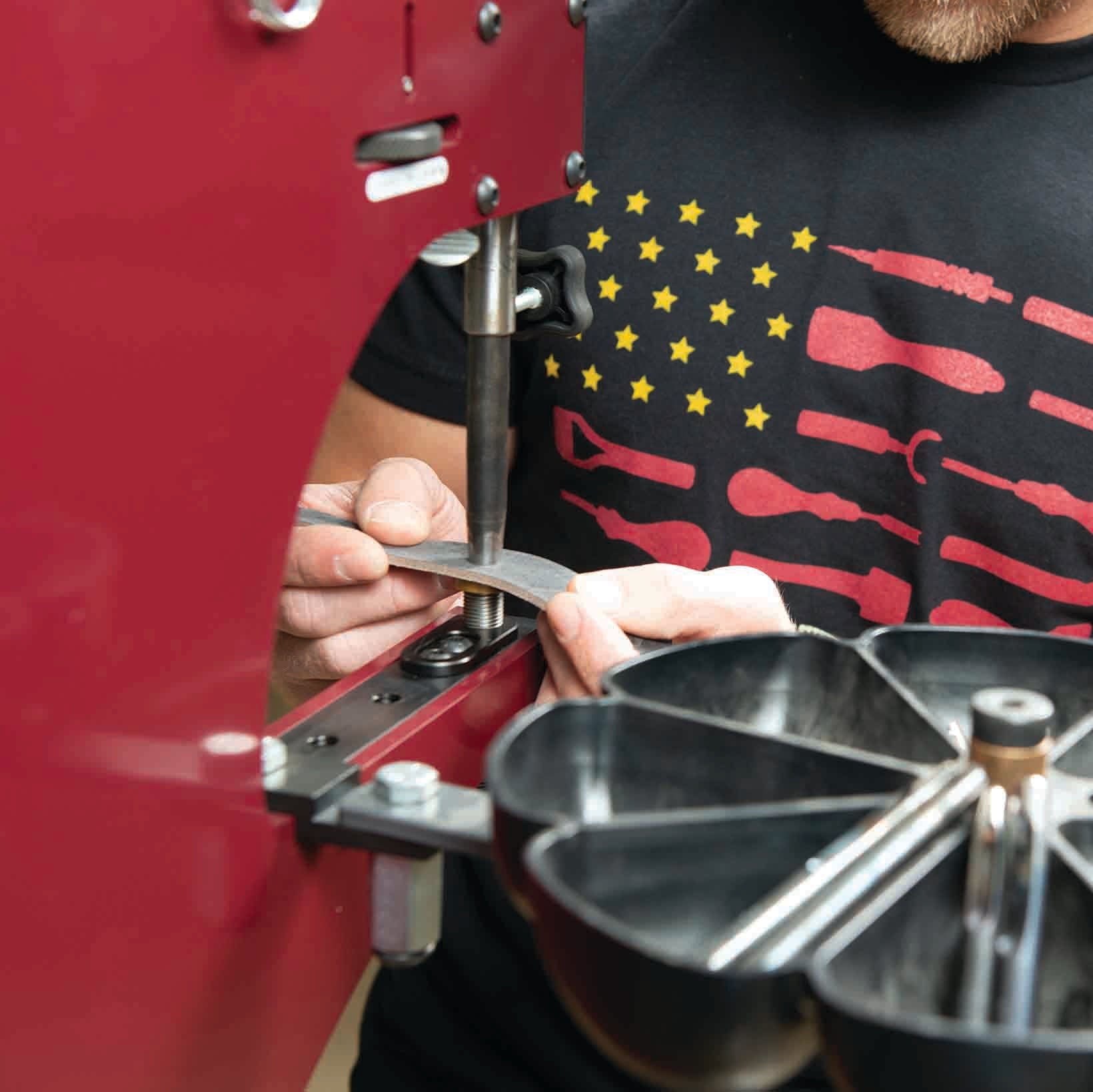

- Automatic feed riveter attachment (sold separately) increases your productivity with a timesaving feed hopper that accommodates approximately 200 rivets
- Simply dump rivets in hopper and you're ready to go without the need to insert rivets individually
- Easy installation of automatic feed riveter attachment by simply sliding on machine and tightening down thumb screw
- Solid steel, not casted, construction for added durability
- Foot pedal features three height adjustments for comfortable operation
- Many of the parts for the Heritage® Foot Press will also work on this machine
- Patent Pending
Additional Details
Master Tool machines are designed for the professional leatherworker and made by our in-house machine shop and local craftspeople following our strict quality guidelines. You'll appreciate the performance and value these quality-made machines provide. From sourcing the right materials to carefully assembling each machine, the Weaver Leather Supply team is committed to bringing you a full line of machines that deliver professional results every time.
Master Tool
Our Master Tool line is designed and crafted to provide a lifetime of dependable service to professional leatherworkers. Weaver Leather Supply is confident that any Master Tool is the last you'll ever need to buy. If not, we'll replace it at no charge.*
*Warranty is valid only on a tool that withstands normal use, following all applicable instructions. The warranty does not include normal maintenance such as resharpening. Weaver Leather Supply reserves the right to determine if a claim falls under the warranty.
Handcrafted by skilled craftspeople in the United States, this product features the finest materials, skilled American workmanship and finishing touches for years of dependable performance.
| MT900 Multifunction Foot Press Parts & Accessories Reference Chart (Sold Separately) | |||
| Function | Attachment | Description | ◆ *See below |
| * Items with this symbol ◆ need the Die Adapter (65-6180) to be compatible with the MT900 Multifunction Foot Press and the MT900 Multifunction Foot Press. | |||
65-6180 Die Adapter
|
This adapter enables our crystal setter attachment, die sets and spotter attachment to be used with MT900 Multifunction Foot Press. Converts a 5/16" hole to a 3/8" hole. | ||
Set #104 Rivets with Splash Back  |
65-6453 #104 Riveter Anvil, 6 Point Splash with 3/8" Stem
|
65-6655 Driver Attachment for #104 Rivets is required (sold separately). This riveter anvil features a 6-point splash and 3/8" stem. |
|
Set #104 Rivets with Cap  |
65-6455 Cap Anvil for #104 Rivets |
65-6655 Driver Attachment for #104 Rivets is required (sold separately) providing a nice, finished look on both sides. |
|
Set #104 Rivets |
65-6165 Die Set Magnetic Driver with Anvils |
For use with plated #104 rivets only; will not work with stainless steel, nickel brass or solid brass rivets | ◆ |
65-6166 Die Set, Magnetic Driver without Anvils |
|||
Set #104 Rivets |
65-6468 Riveting Die, Long Loop Anvil |
65-6655 Driver Attachment for #104 Rivets is required (sold separately). For #104 rivets up to 3/4" long. For riveting wide loops and other hard-to-reach areas. Slot allows a 2-3/4" reach. |
◆ |
Set #104 Rivets |
65-6469 Riveting Die, Replacement Splash Anvil  |
65-6655 Driver Attachment for #104 Rivets is required (sold separately). For use with 65-6457 Standard Loop Anvil and 65-6468 Long Loop Anvil | |
Set #104 Rivets |
65-6655 Driver Attachment for #104 Rivets
|
Sets #104 Rivets. Compatible with the Master Tools Little Wonder®. Can be used with the MT900 Multifunction Foot Press with the addition of the Die Adapter. | ◆ |
Designed to give you even spacing when spotting, punching, stapling and riveting
|
65-6580 Universal Foot Press Guide
|
Designed to give you even spacing when spotting, punching, stapling and riveting | |
|
|
65-6662 Crystal Setter Attachment, 5/16" Includes Anvil |
Sets 5/16" crystals to add a touch of sparkle to any project |
◆ |
|
|
65-6665 Spotter Attachment, 1/8", 3/16", 1/4", 5/16", 3/8" or 1/2", specify size. |
In combination with the 65-6664 Anvil below, this attachment sets spots with ease and precision |
◆ |
65-6664 Anvil for Spot Setter Attachment, 1/8", 3/16", 1/4", 5/16", 3/8" or 1/2", specify size Replacement part for 65-6665 and 65-6662 above
|
Sets spots or cystals with ease and precision when used in combination with the 65-6662 Crystal Setter Attachment or 65-6665 Spotter Attachment above | ◆ |
|
|
Set eyelets  |
65-6668 Eyelet Setter, 8 mm, 10 mm or 12 mm, specify size
|
Adds eyelets to your projects with ease and precision |
◆ |

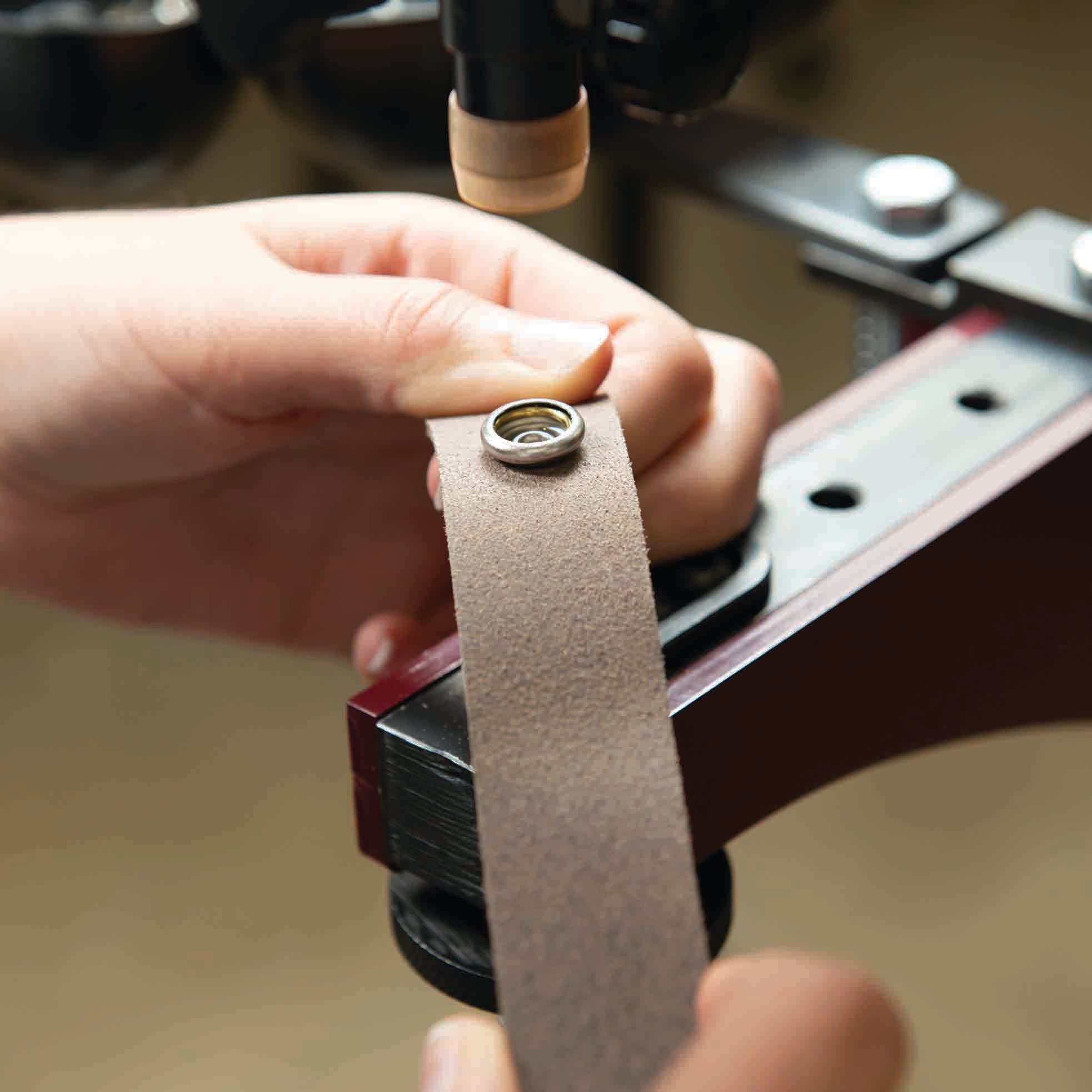

Set Snaps  |
65-6160 2205 Segma Snaps Die Set  |
Sets top and bottom of 2205 Segma Snaps | ◆ |
 |
65-6161 2206 Snaps (#20 Line Snaps) Die Set  |
Sets top and bottom of 2206 Snaps (#20 Line Snaps) |
◆ |
 | 65-6162 4P Durable Snaps (#24 Line Snaps) Die Set  |
Sets top and bottom of 4P Durable Snaps (#24 Line Snaps) |
◆ |
Set Double Cap, Rapid & Jiffy Rivets  |

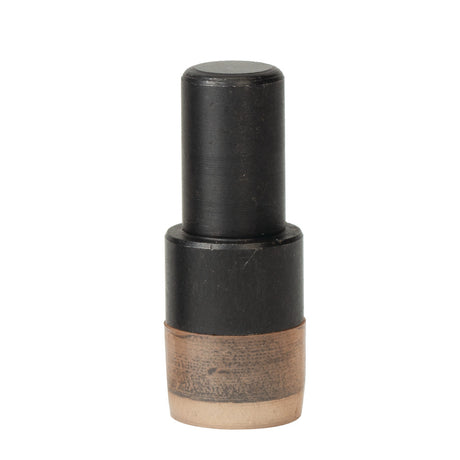

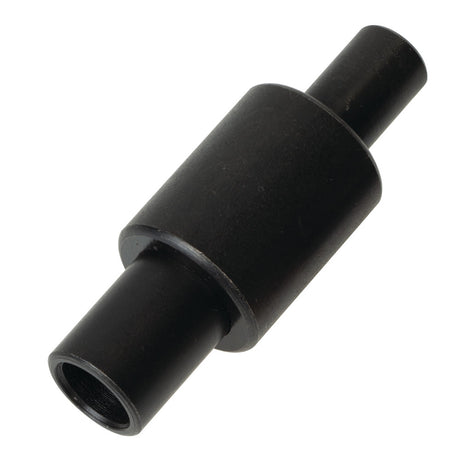

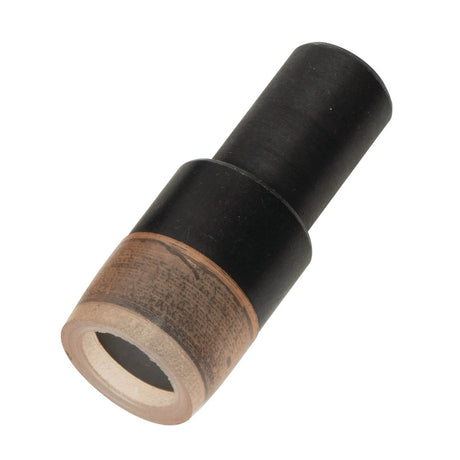

65-6163 Double Cap, Rapid & Jiffy Rivets Die Set Note: Won't set 1/4" 2200 Rivets.
|
Sets double cap, rapid and jiffy rivets with caps |
◆ |

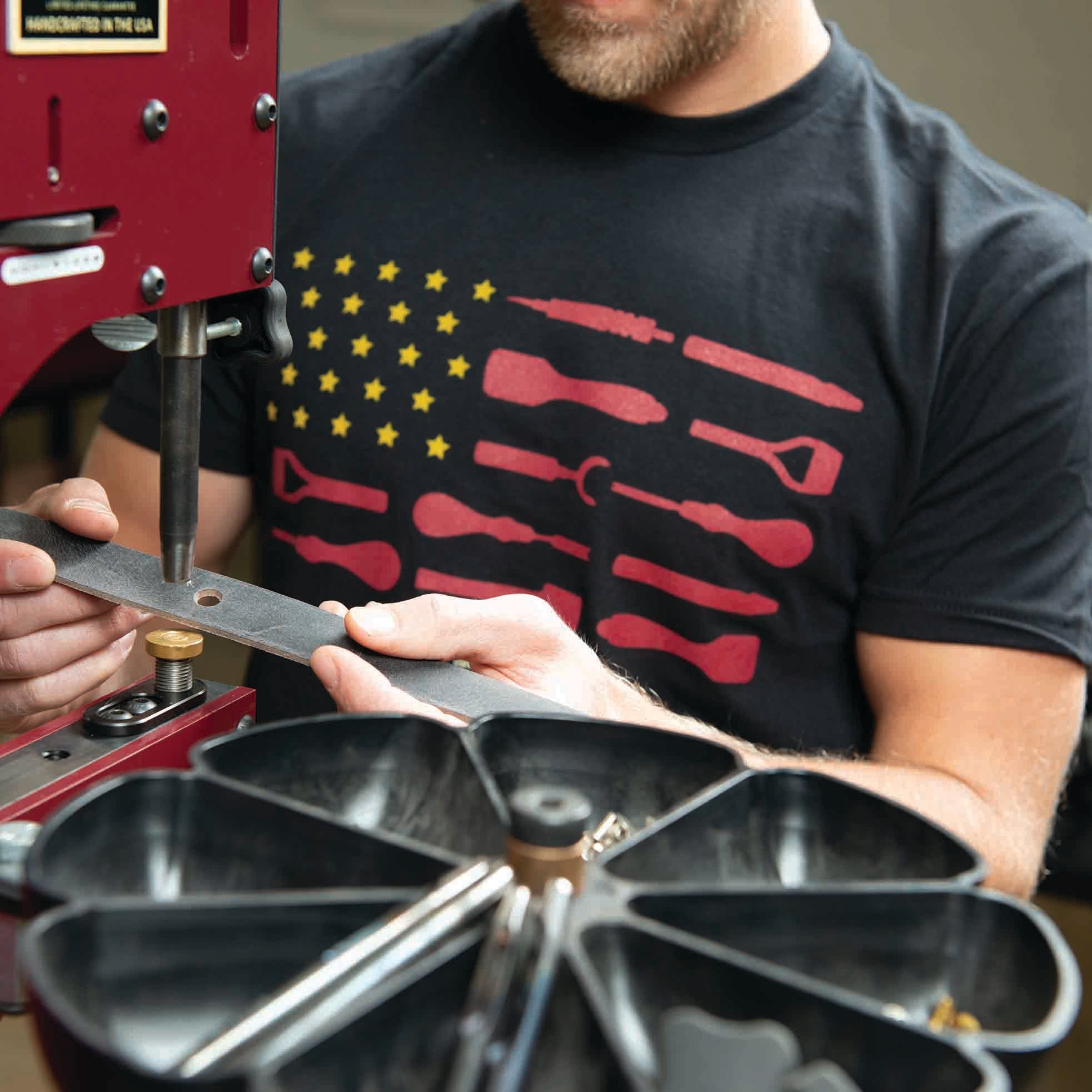

Punch Holes |
65-6603 Round Drive Punch. Choose: 3/32", 5/32", 7/32", 1/8", 3/16", 1/4", 5/16", 3/8"
|
For use with 65-6585 brass anvil. Compatible with the MT900 Multifunction Foot Press. |
|
65-6585 Brass Anvil  |
Used with the 65-6193 Threaded Punch Handle and 65-6615 Hole Punch Tubes (both above) when punching holes | ||
65-6402 Replacement Thumb Screw for the MT900 Multifunction Foot Press. |
65-6402 Replacement Thumb Screw for the MT900 Multifunction Foot Press"
|
Replacement Thumb Screw for the MT900 Multifunction Foot Press. |
|
|
65-6404 Jack Screw and Nut |
65-6404 Replacement Jack Screw and Nut for the MT900 Multifunction Foot Press"
|
Replacement Jack Screw and Nut for the MT900 Multifunction Foot Press. |
|
|
|
65-6571 Slide Loop Staple Die, Anvil
|
High quality staple adds durability and style to your leatherwork. Great for belts, belt loops, designs on bracelets and more. | |
|
| 65-6671 Slide Loop Staple Setter
|
For setting our 15S4 Loop Staples. Works with our Master Tools Little Wonder and the MT900 Multifunction Foot Press. The Die Adapter (65-6180) is needed to use this. | ◆ |
|
|
65-6673 Slide Loop Staple Setter with Spot Anvil
|
For setting our 15S4 Loop Staples. Works with our Master Tools Little Wonder and the MT900 Multifunction Foot Press. The Die Adapter (65-6180) is needed to use this. |
◆ |
