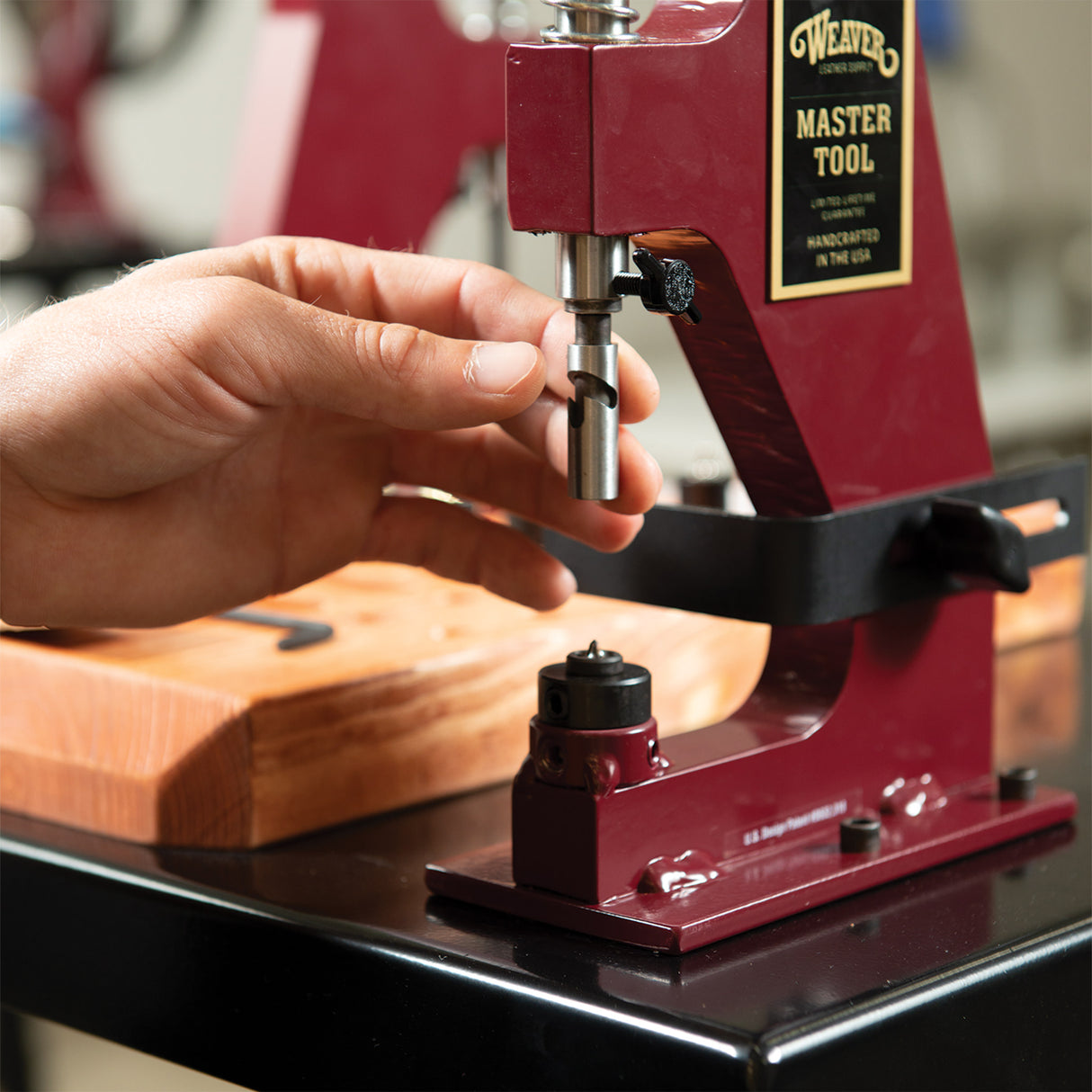

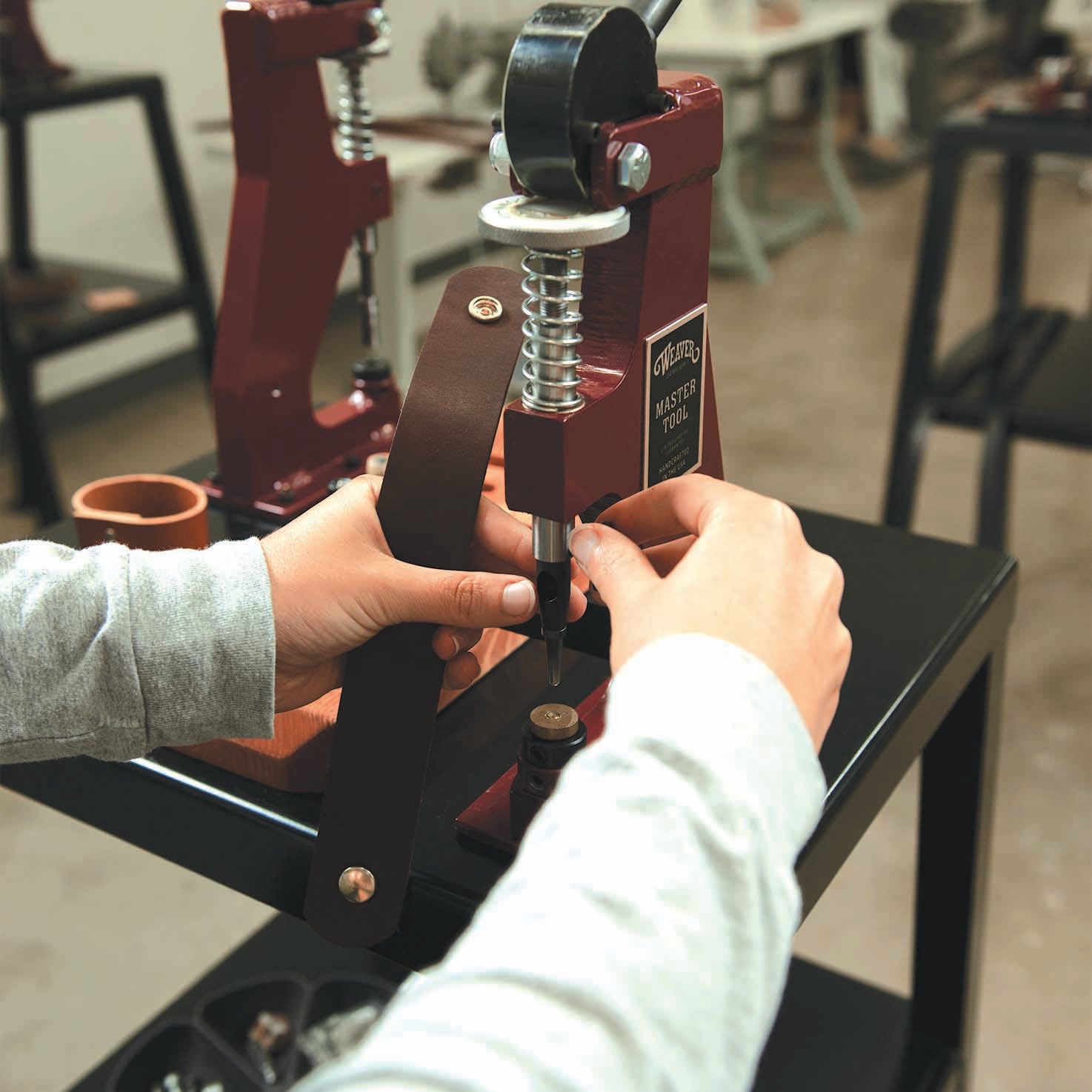

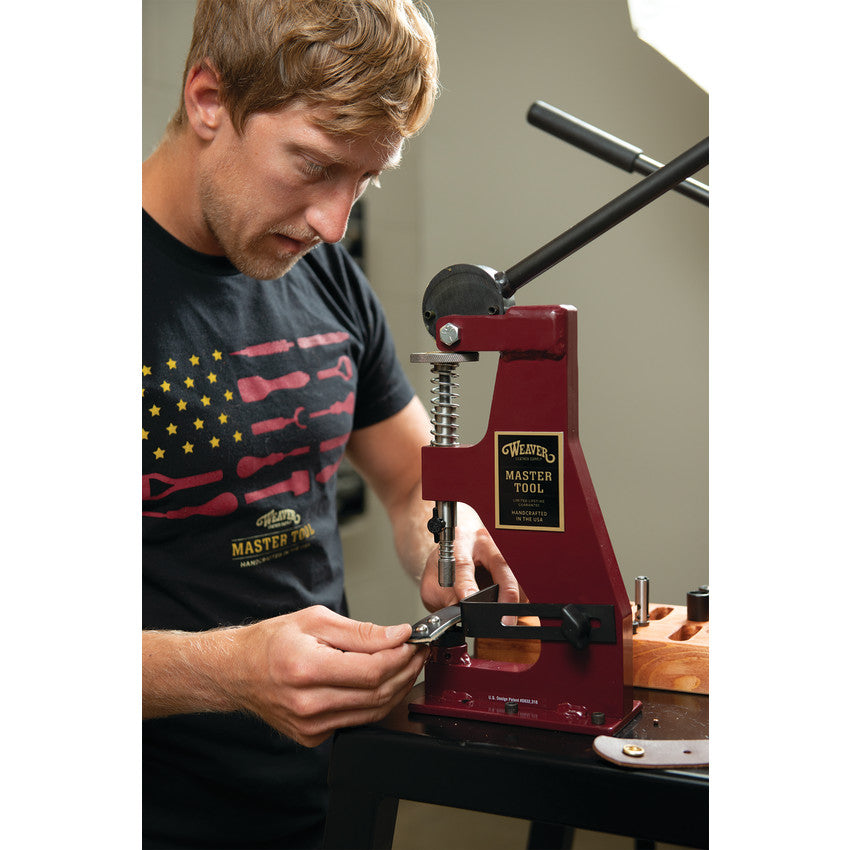

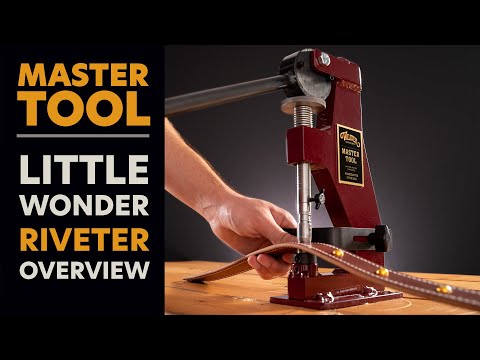

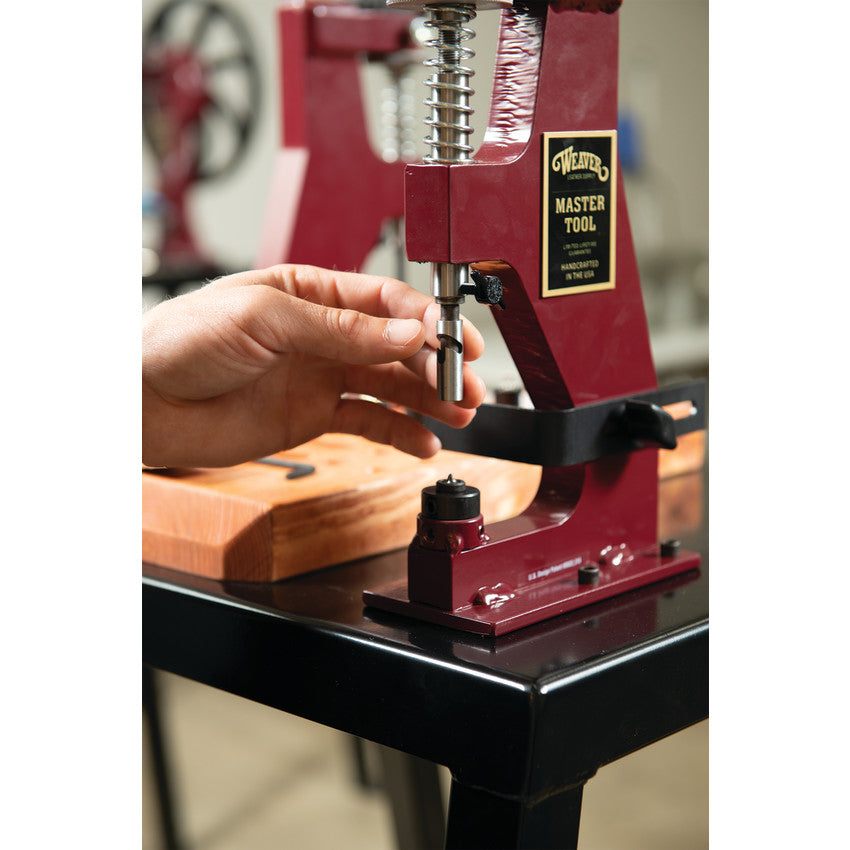

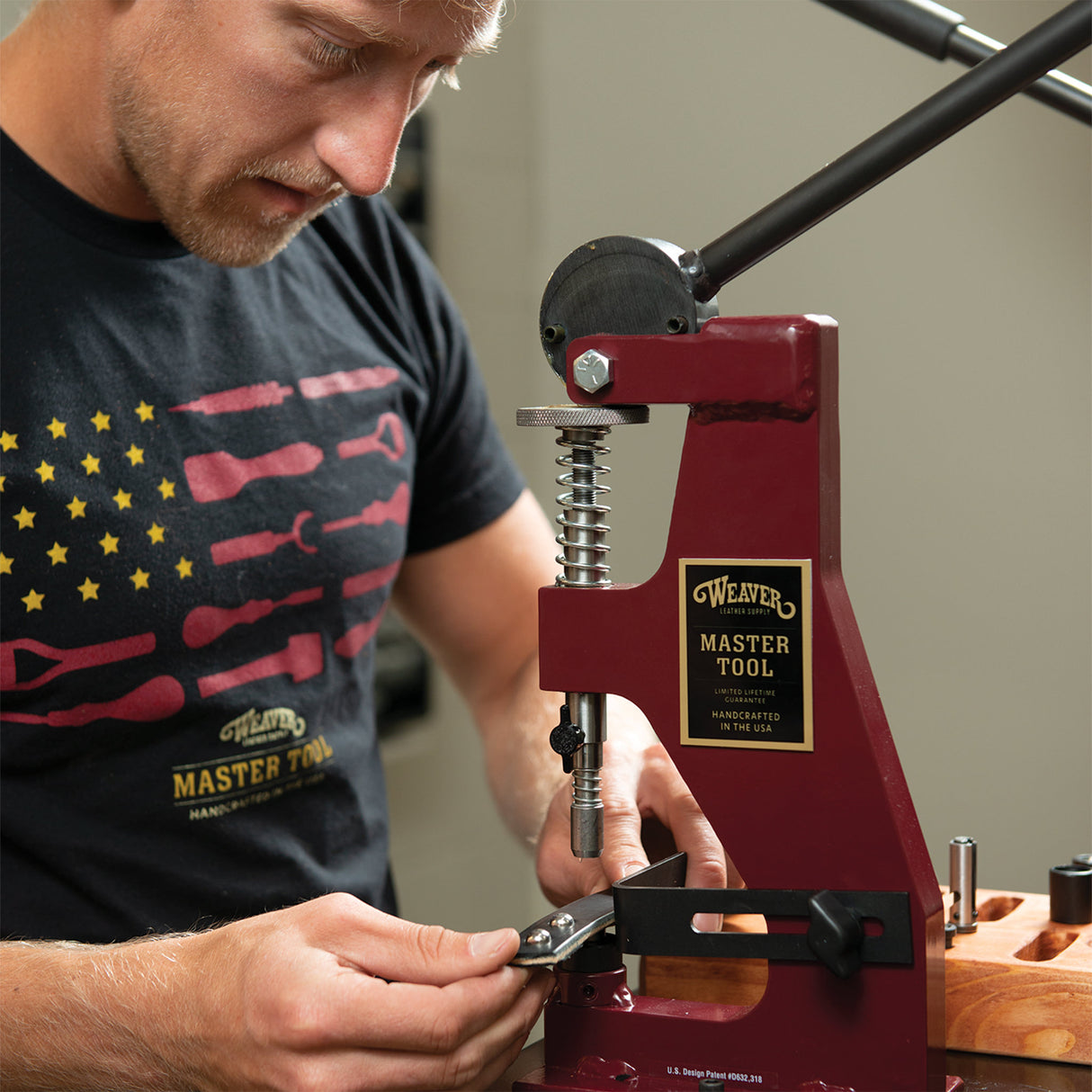

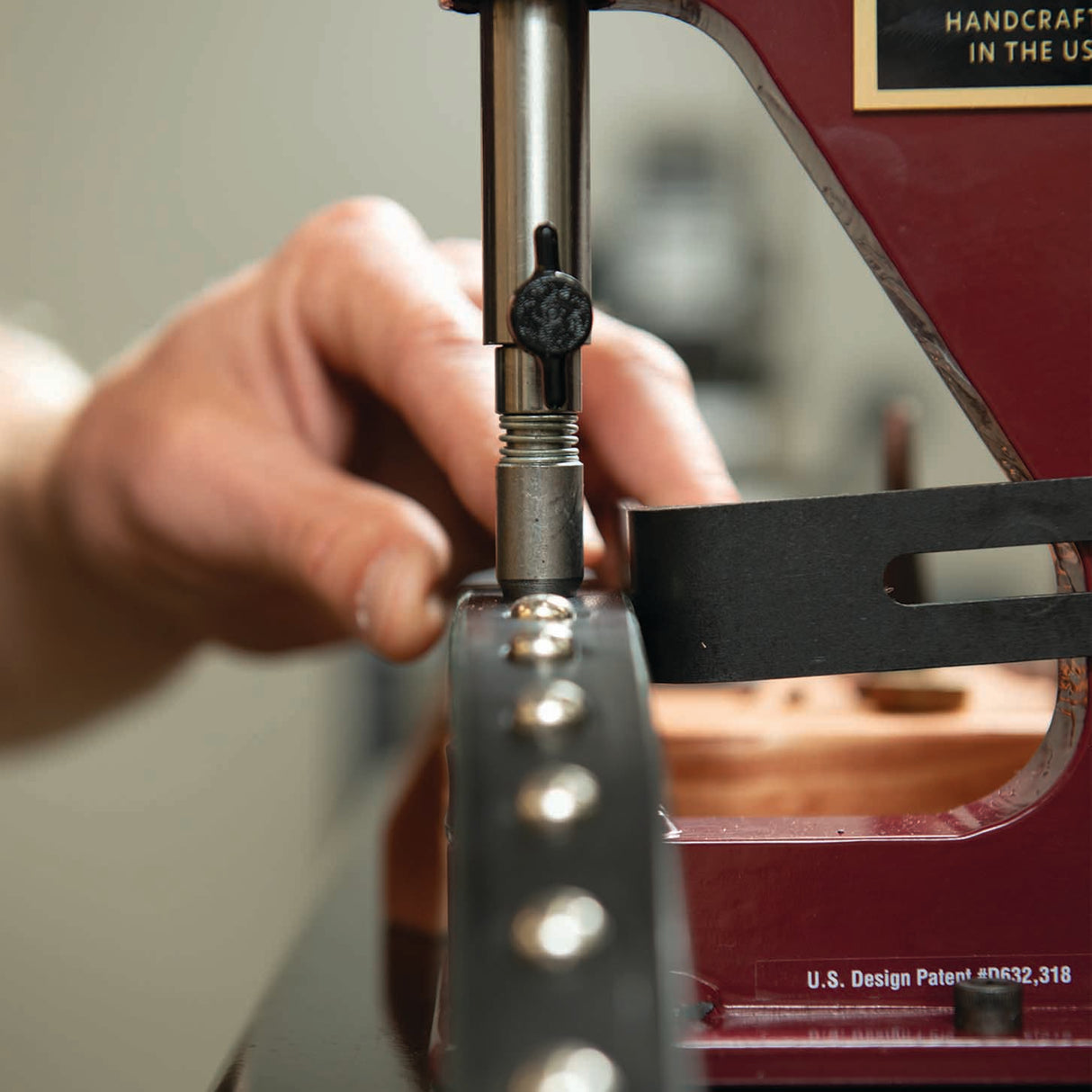

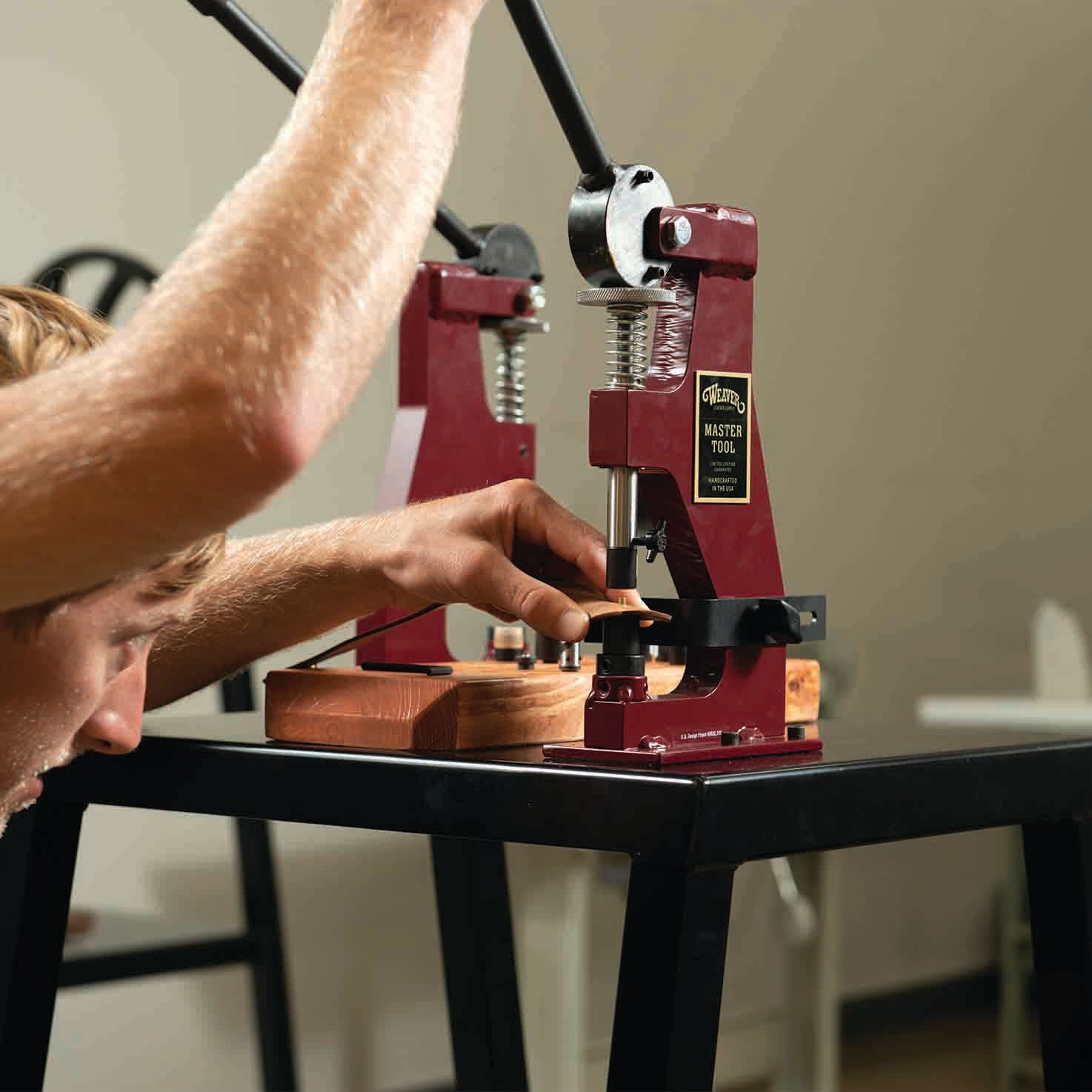

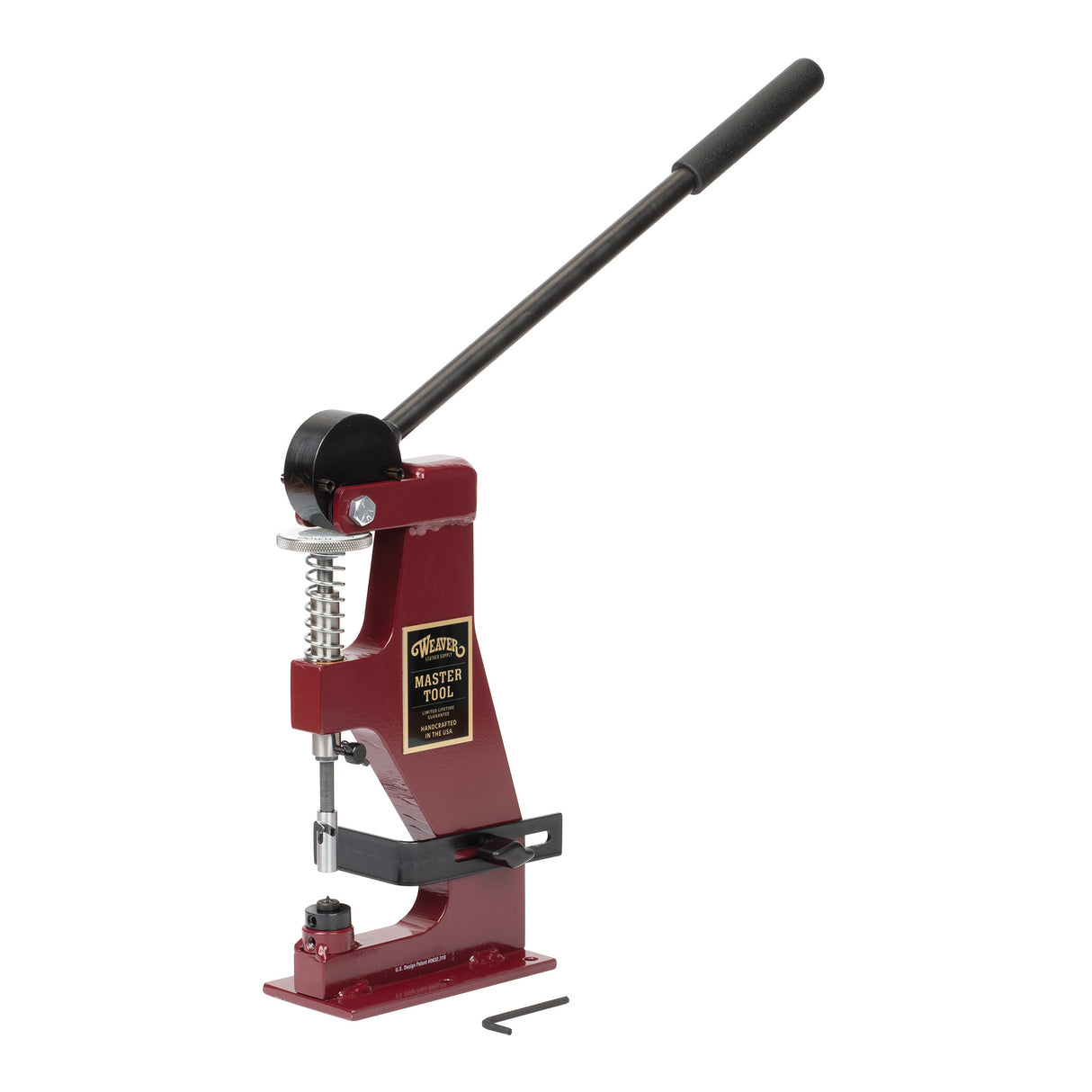

Master Tool Little Wonder®

• Compact, patented design of our popular Little Wonder sets snaps, rivets, caps, crystals, spots and grommets quickly, easily and professionally

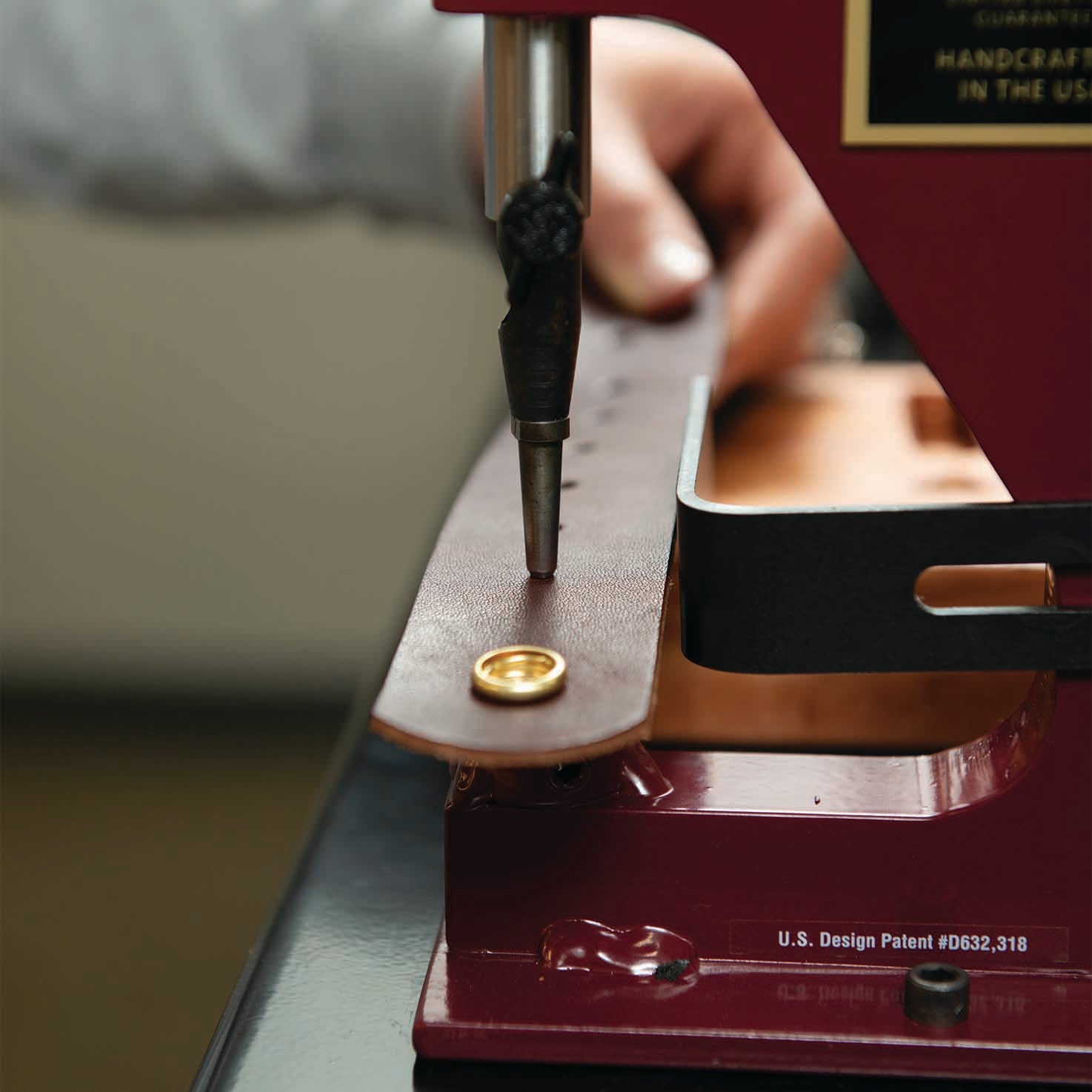

• A must-have on your workbench, this riveting machine will increase your precision and productivity with the ability to rivet, punch holes, set snaps and so much more
• Unique cam action arm gives you added leverage so you can operate with just one hand, reducing stress and fatigue
• Designed and manufactured by Weaver Leather Supply for dependability and performance
• Hand-operated design allows you to rivet faster and with more precision than any other hand-operated riveting machine on the market
• Works with leather, webbing, coated webbing, fabrics and other man-made materials
• Compact design is economically priced
• Handcrafted in the USA
• U.S. Design Patent #D632,318
• Die sets, drivers, anvils, and attachments for rivets, snaps, crystals, grommets, and spots are sold separately

Master Tool machines are designed for the professional leatherworker and made by our in-house machine shop and local craftspeople following our strict quality guidelines. You'll appreciate the performance and value these quality-made machines provide. From sourcing the right machines for the job to carefully assembling each machine, the Weaver Leather team is committed to bringing you a full line of machines that deliver professional results every time.

• Little Wonder® Riveter Fully Assembled
• Guide
• Driver Splash Anvil for #104 Rivets
• Owner’s Manual

• Replacement Thumb Screw for Little Wonder® and Rotary Punch
• Replacement Thumb Screw for the Guide on Little Wonder®
• Replacement 2" Knurled Adjustment Knob for Master Tool Little Wonder
• Replacement Spring for Master Tool Little Wonder®
• Replacement 1/4" Top Set Screw for Master Tool Little Wonder®
• Replacement Nylon Insert for Master Tool Little Wonder®
• Replacement 5/16" Anvil Set Screw for Master Tool Little Wonder®
• Replacement Driver Shaft for Master Tool Little Wonder®
• Replacement Spring for Rivet Driver for Master Tool Little Wonder®
• Replacement Guide for Little Wonder®
• Driver Attachment for #104 Rivets
• Splash Anvil for #104 Rivets

Product	Notes

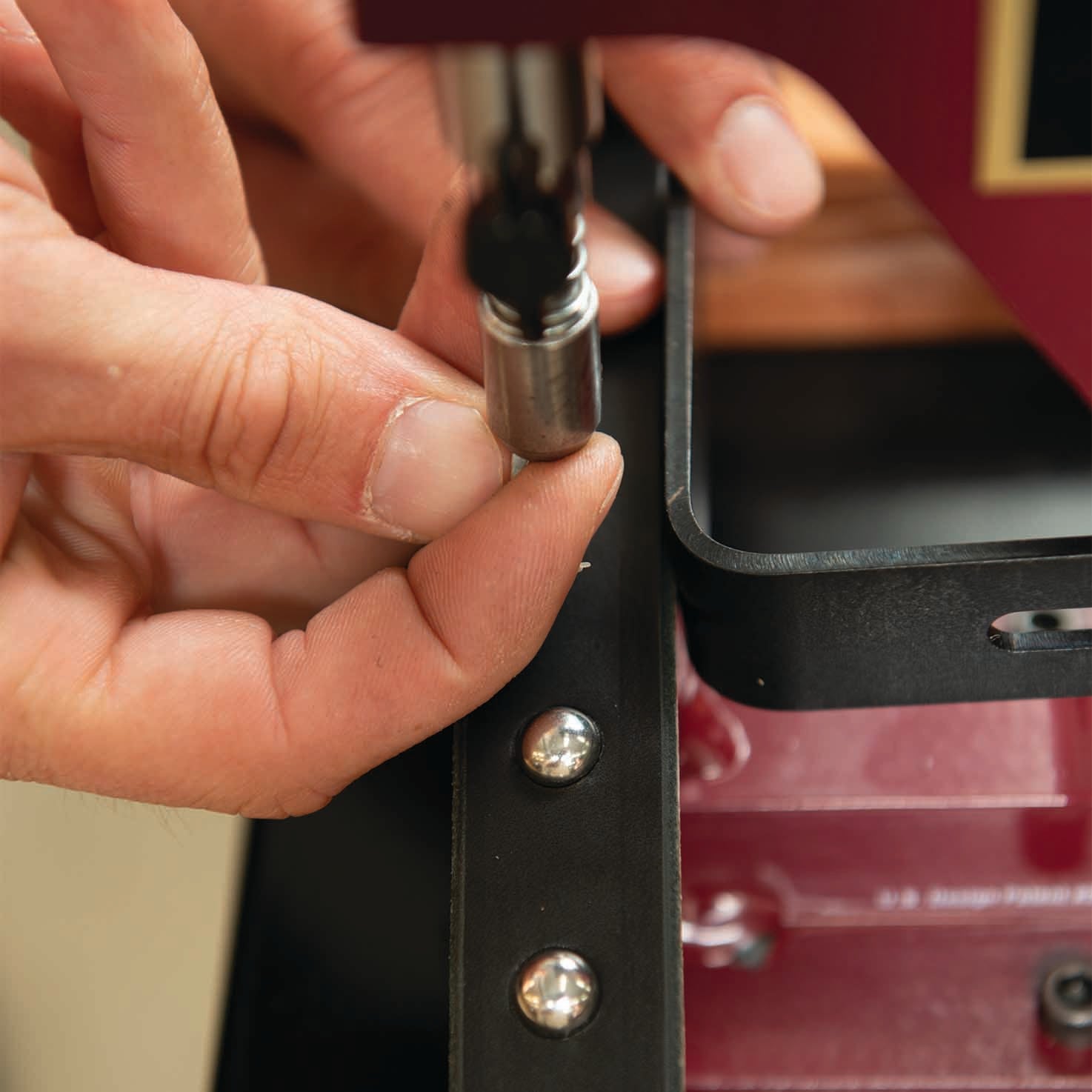

Setting #104 Rivets

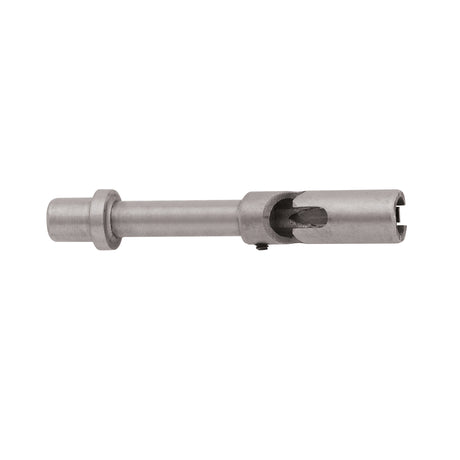

65-6655 - Driver Attachment for #104 Rivets	Included with Little Wonder

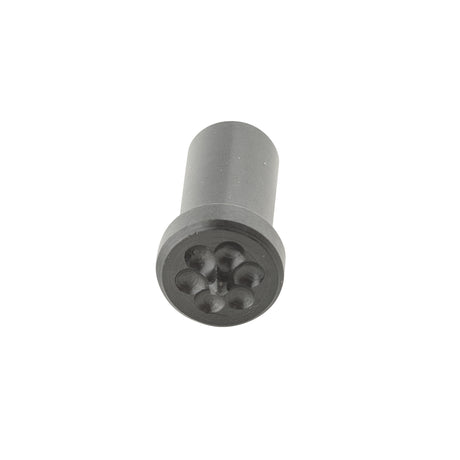

65-6453 - Splash Anvil for #104 Rivets

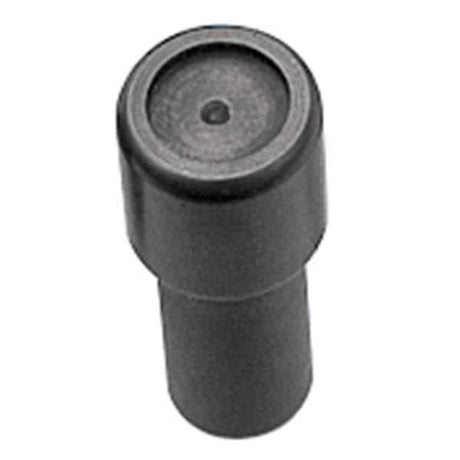

65-6455 - Cap Anvil for #104 Rivets
65-6165 - Die Set Magnetic Driver with Anvils	For use with plated #104 rivets only
Setting Crystals

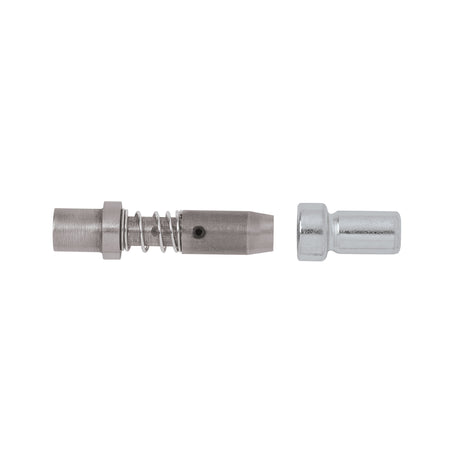

65-6662 - Crystal Setter Attachment 5/16"	Sets our Synthetic Crystal Pack
Setting Spots

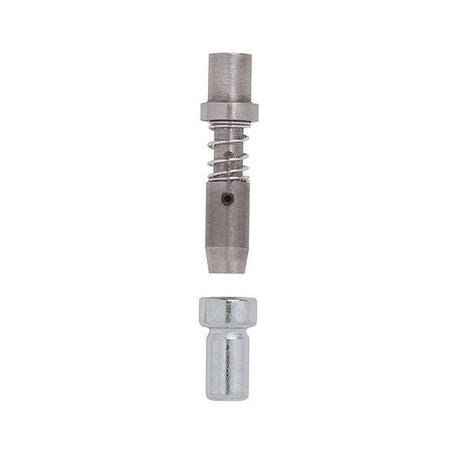

65-6665 - Spotter Attachment

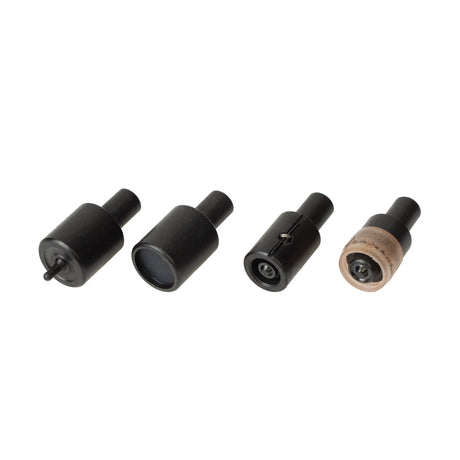

Snap Setter Die Sets

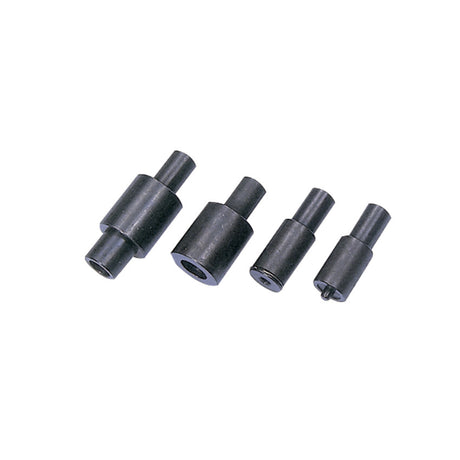

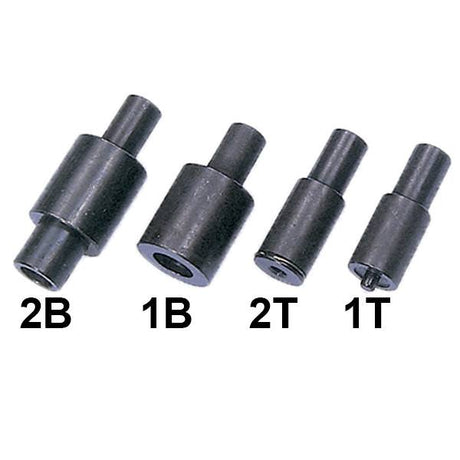

65-6160 - Die Set, 2205 Segma Snaps	Sets #2205 Segma Snaps

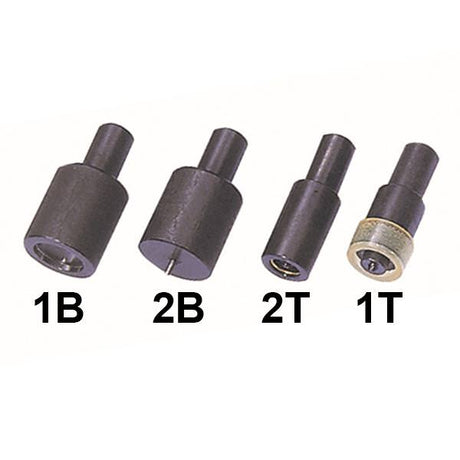

65-6161 - Die Set, 2206 Snaps	Sets Line 20 Snaps, #2206
65-6162 - Die Set, 4P Durable Snaps	Sets 4P Line 24 Durable Snap and #2207 Locking Snap
Setting Double Cap, Insta-Rivet, and Jiffy Rivet

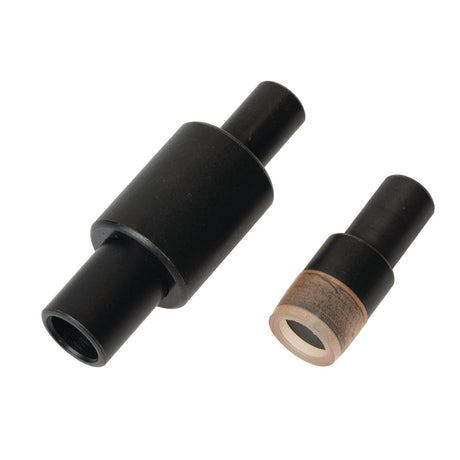

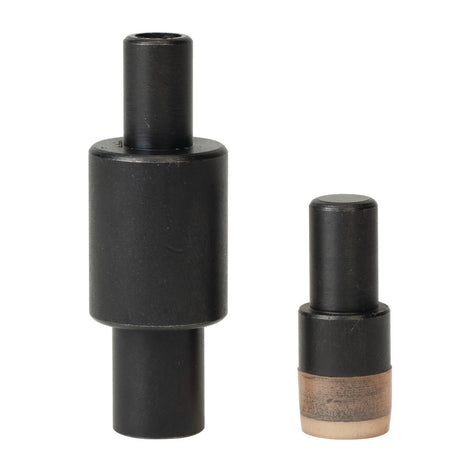

65-6163 - Rivet Die Set for Double Cap, Rapid and Insta-Rivets
Setting Eyelets

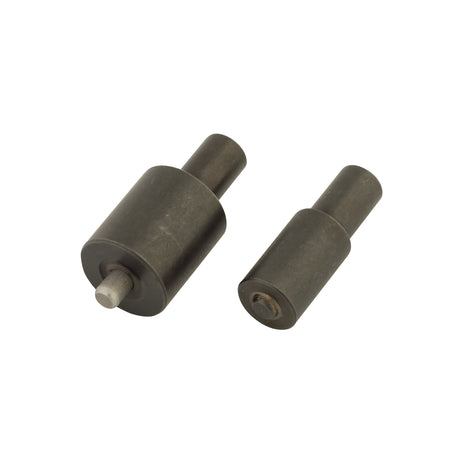

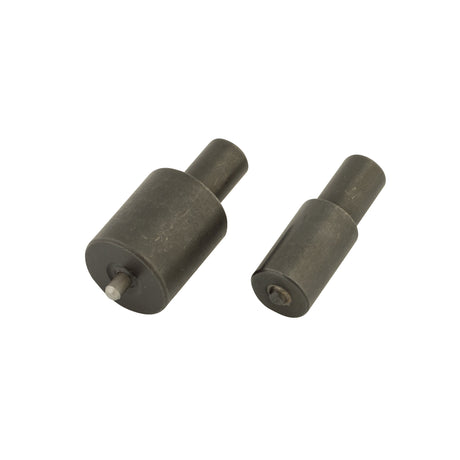

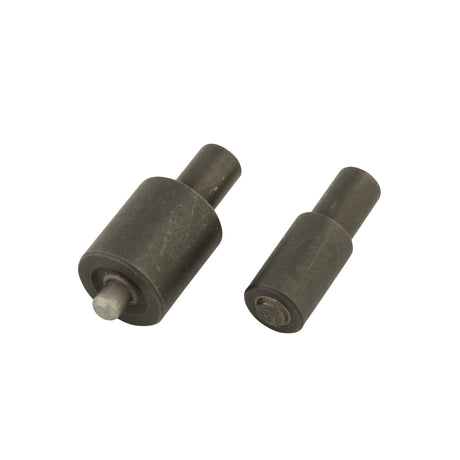

65-6668 - Eyelet Setter Attachment
Setting Grommets

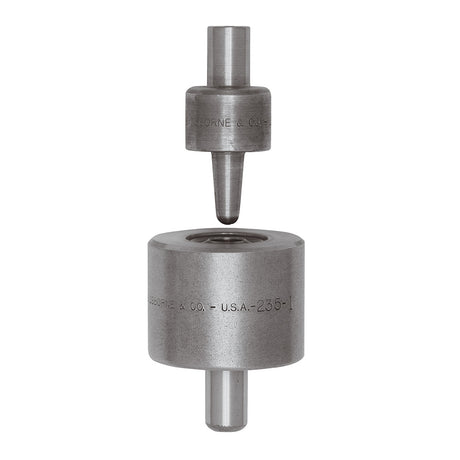

65-6667 - Grommet Setter Attachment
Threaded Punch Tubes

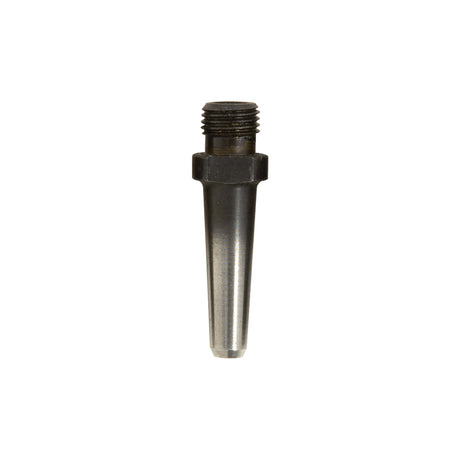

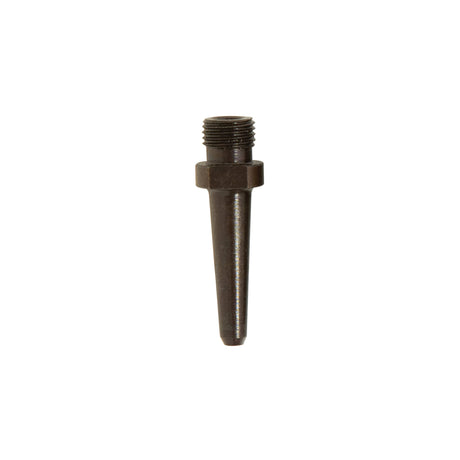

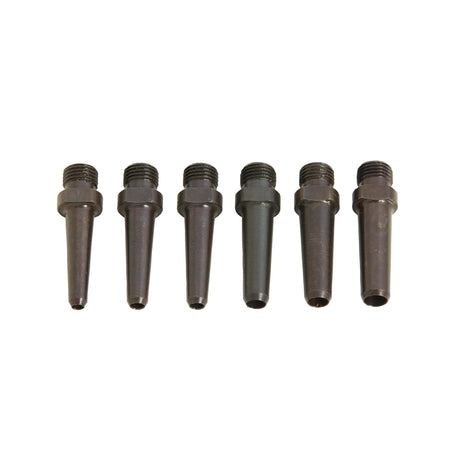

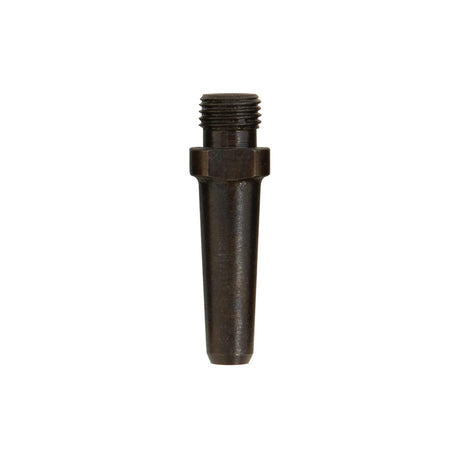

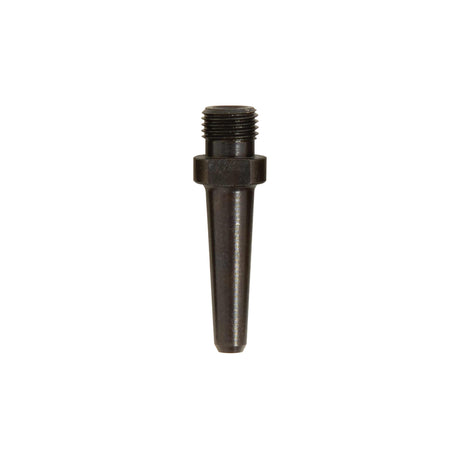

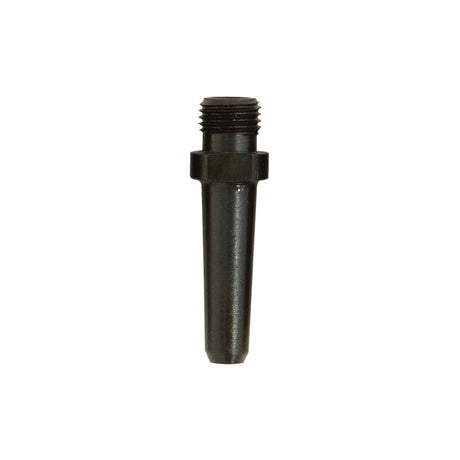

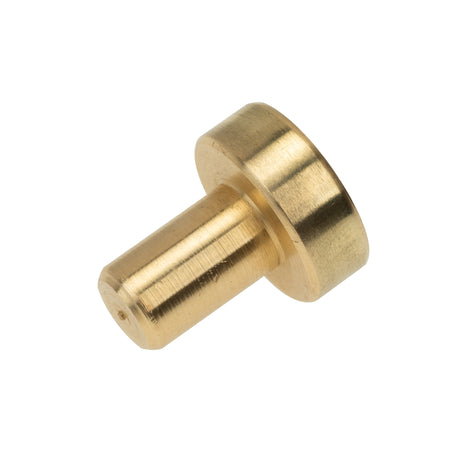

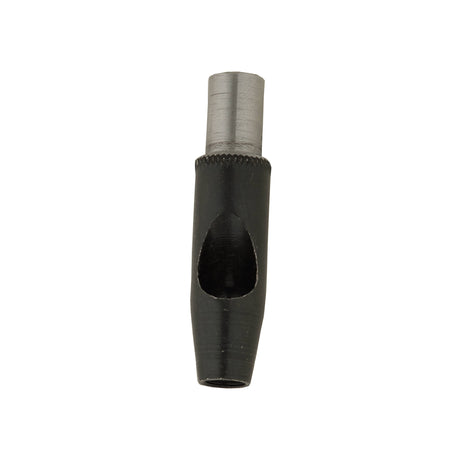

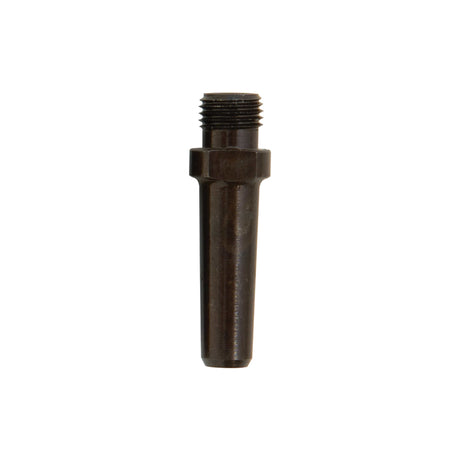

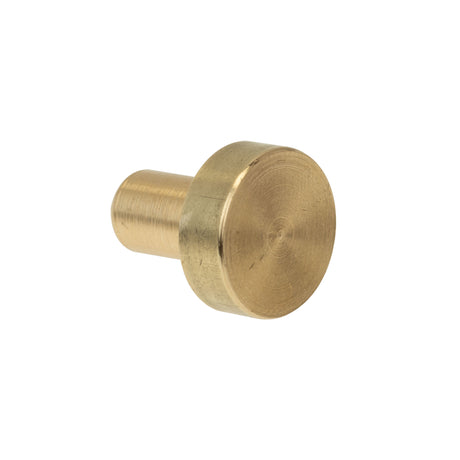

65-6615 - Gang Punch Tube	Must use with 65-6193 - Threaded Punch handle for Master Tool Little Wonder® and 65-6585 - Brass Anvil
Setting Loops

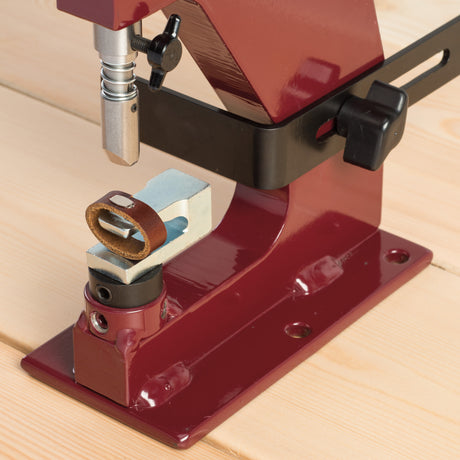

65-6672 - Slide Loop Staple Setter with Loop Anvil

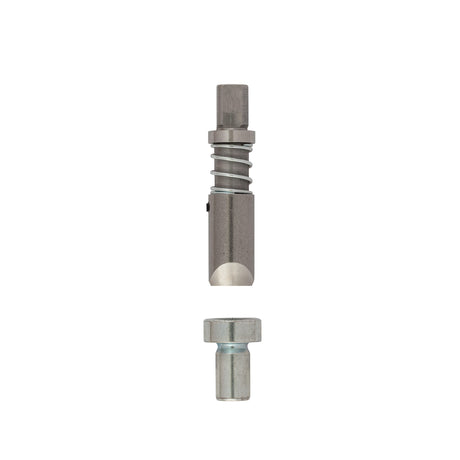

65-6673 - Slide Loop Staple Setter with Spot Anvil
65-6671 - Slide Loop Staple Setter

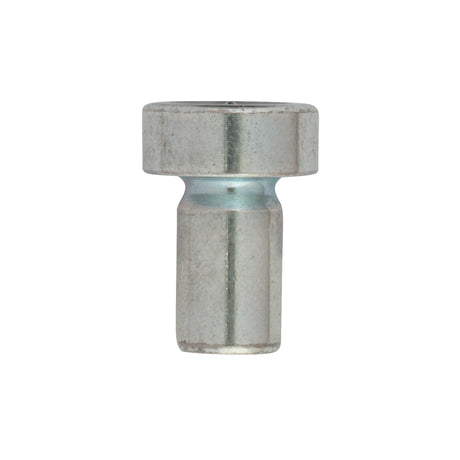

65-6664 - Replacement Anvil for Spot Setter

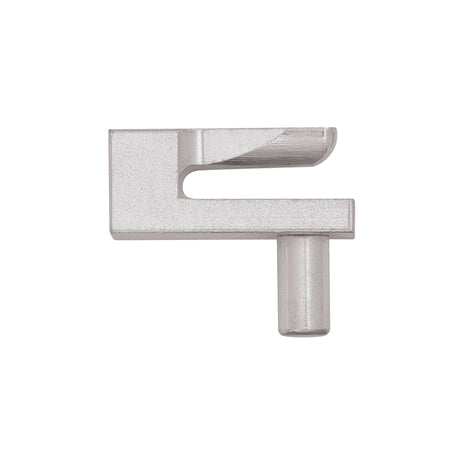

65-6571 - Loop Staple Attachment, Anvil Only	For setting our #15S4 Loop Staples
Compatible Dies

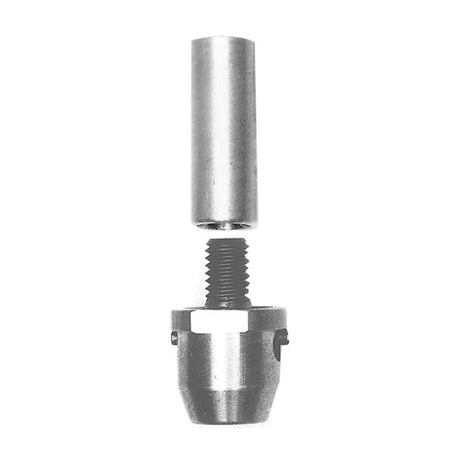

T-1139 - Reg Durable Button Die, #T-1139	Requires T-1425 Adapter
T-1141U - Regular Durable Stud Die, #T-1141U	Requires T-1425 Adapter
T-1143 - Baby Durable Button Die, #T-1143	Requires T-1425 Adapter
T-1144 - Baby Durable Socket Die, #T-1144	Requires T-1425 Adapter
T-1145 - Baby Durable Stud Die, #T-1145	Requires T-1425 Adapter
T-1146 - Baby Durable Eyelet Die, #T-1146	Requires T-1425 Adapter
T-1169 - Bottom Peening Die, #T-1169	Requires T-1425 Adapter

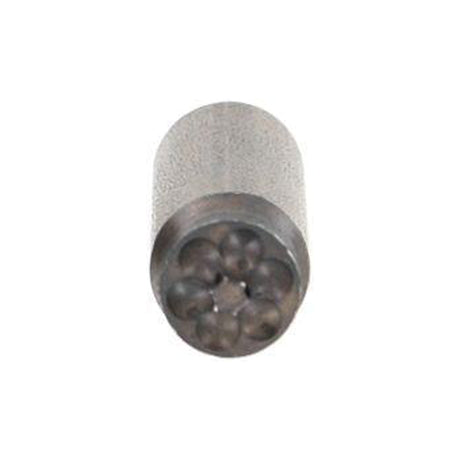

T-1171 - Peening Die for OTB Pro Kit, #T-1171	Requires T-1425 Adapter
T-1173 - Die for Large Tubular Rivets, #T-1173	Requires T-1425 Adapter
T-1174 - Die for Small Tubular Rivets, #T-1174	Requires T-1425 Adapter
T-1175 - Regular Durable Die, #T-1175	Requires T-1425 Adapter
T-1225 - Eyelet Die Set, #T-1225	Requires T-1425 Adapter
T-1226 - Eyelet Die Set, #T-1226	Requires T-1425 Adapter

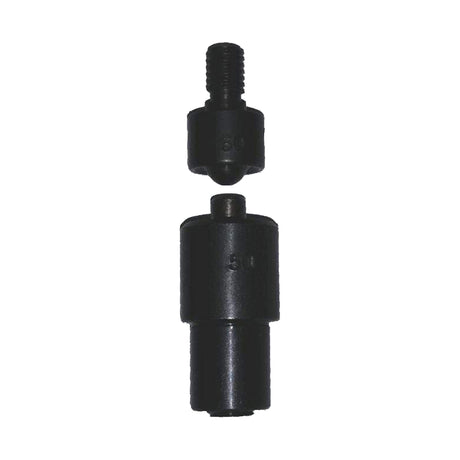

T-1227 - Eyelet Die Set, #T-1227	Requires T-1425 Adapter
T-1228 - Eyelet Die Set, #T-1228	Requires T-1425 Adapter
T-1253 - Dies for 206d Jiffy Rivet, #T-1253	Requires T-1425 Adapter
T-1255 - Dies For 307S, 309S & 311S Jiffy Rivet, #T-1255	Requires T-1425 Adapter
T-1257 - Dies for 407S & 409S Jiffy Rivet, #T-1257	Requires T-1425 Adapter
T-1258 - Dies for 510D, 512D, 515D, A-311 & A-312 Jiffy Rivet, #T-1258	Requires T-1425 Adapter
T-1269-7MM - 9/32in Hole Punch, #T-1269-7MM	Requires T-1425 Adapter

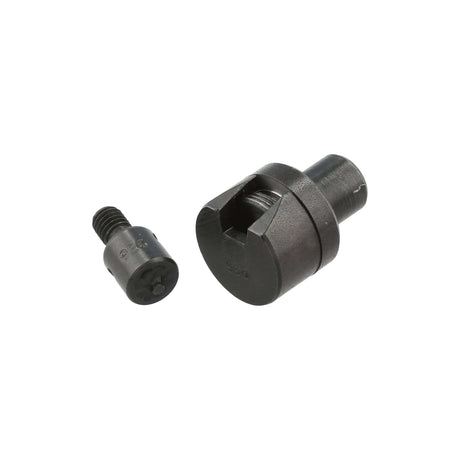

T-1294 - Boot Hook Die, #T-1294	Requires T-1425 Adapter
T-1392CD - Cap Die For #40 Rivet Caps, #T-1392CD	Requires T-1425 Adapter
T-1407 - Eyelet Die Regular Durable/Pull-Dot, #T-1407	Requires T-1425 Adapter
T-1410 - Socket Die Reg Durable, #T-1410	Requires T-1425 Adapter
T-1412 - Stud Die Reg Durable, #T-1412	Requires T-1425 Adapter
T-1483 - Button Die Baby Durable, #T-1483	Requires T-1425 Adapter
T-1486 - Stud Die Baby Durable, #T-1486	Requires T-1425 Adapter
T-1488 - Eyelet Die Baby Durable, #T-1488	Requires T-1425 Adapter
T-1580 - Segma 22, Socket Die, Steel, #T-1580	Requires T-1425 Adapter
T-1581 - Segma 22, Button Die, Steel, #T-1581	Requires T-1425 Adapter
T-1587 - Segma 22 Eyelet Die, #T-1587	Requires T-1425 Adapter
T-1648 - Machine Die Set For A-406 To A-408 Dome Rivets, #T-1648	Requires T-1425 Adapter
T-1649 - Machine Die Set For A-409 To A-412 Dome Rivets, #T-1649	Requires T-1425 Adapter
T-1650 - Machine Die Set For A-413 To A-415 Dome Rivets, #T-1650	Requires T-1425 Adapter
T-1651 - Ligne 6™ Parallel Spring Snap Button Die, #T-1651	Requires T-1425 Adapter
T-1652 - Ligne 6™ Parallel Spring Snap Socket Die, #T-1652	Requires T-1425 Adapter
T-1653 - Ligne 6™ Parallel Spring Snap Stud Die, #T-1653	Requires T-1425 Adapter
T-1655 - Ligne 4™ Parallel Spring Snap Button Die, #T-1655	Requires T-1425 Adapter
T-1656 - Ligne 4™ Parallel Spring Snap Socket Die, #T-1656	Requires T-1425 Adapter
T-1657 - Ligne 4™ Parallel Spring Snap Stud Die, #T-1657	Requires T-1425 Adapter
T-1658 - Ligne 4™ Parallel Spring Snap Eyelet Die, #T-1658	Requires T-1425 Adapter
T-9219R - Segma 22, Stud Die, Steel, #T-9219R	Requires T-1425 Adapter
T-9323 - Socket Die Baby Durable, #T-9323	Requires T-1425 Adapter
