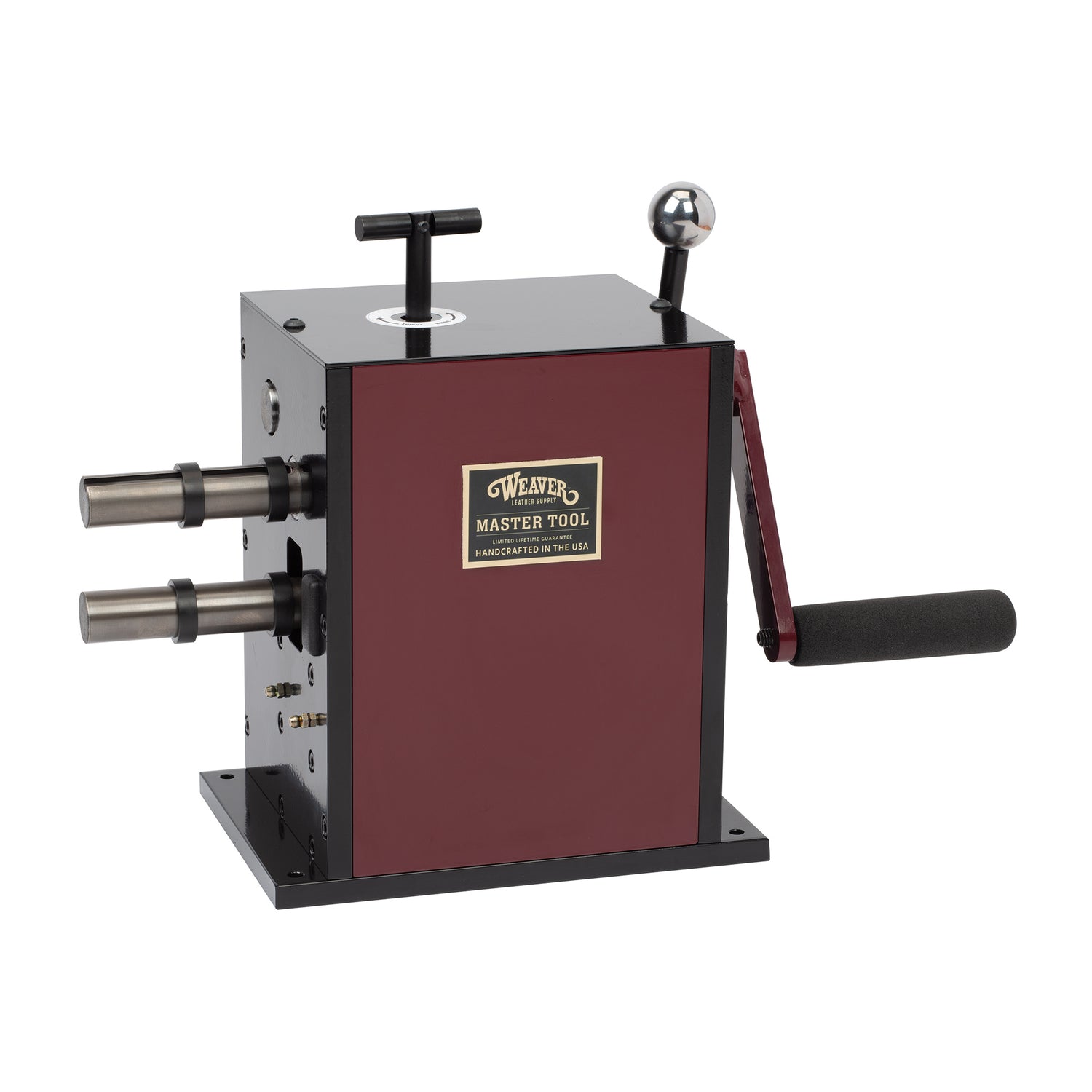

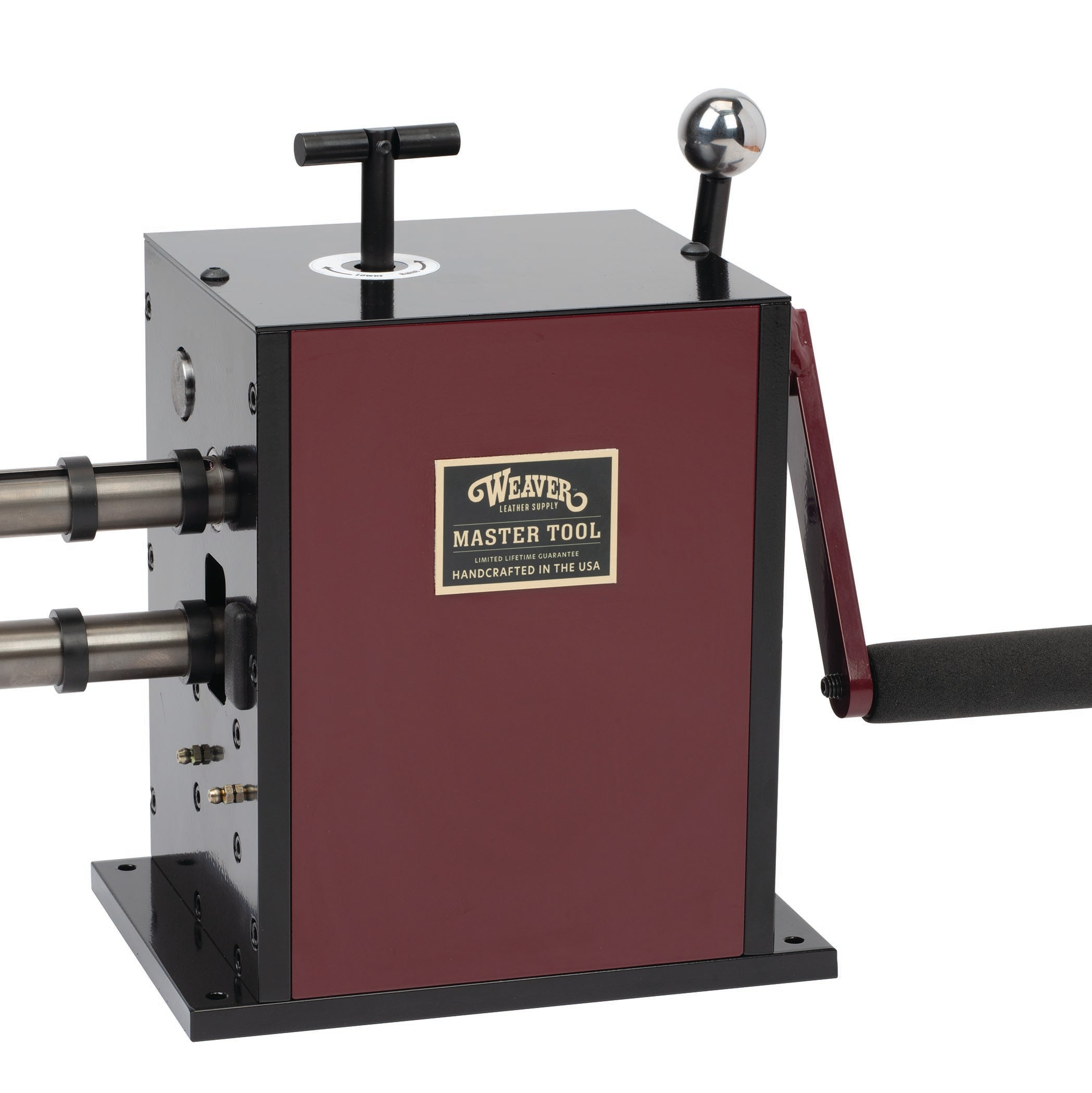

Master Tool Creaser and Embosser
Couldn't load pickup availability
Description
Description
- Crease and emboss your leather projects like a pro with this easy-to-set-up machine that gives you the versatility to select just the right size rolls
- Choose from five creaser roll sizes (5/8", 3/4", 1", 1-1/4" or 1-1/2") and six embossing roll designs to customize your machine to meet your needs. Rolls must be purchased separately and are not included with this machine.
- Gives you the versatility to emboss edges of larger products as well as straps
- Quick-change design allows you to use spacers to achieve different looks
- Hand-operated machine accommodates leather with a minimal thickness of 4/5 oz.
- Specially-designed and built by Weaver Leather Supply for years of dependable service

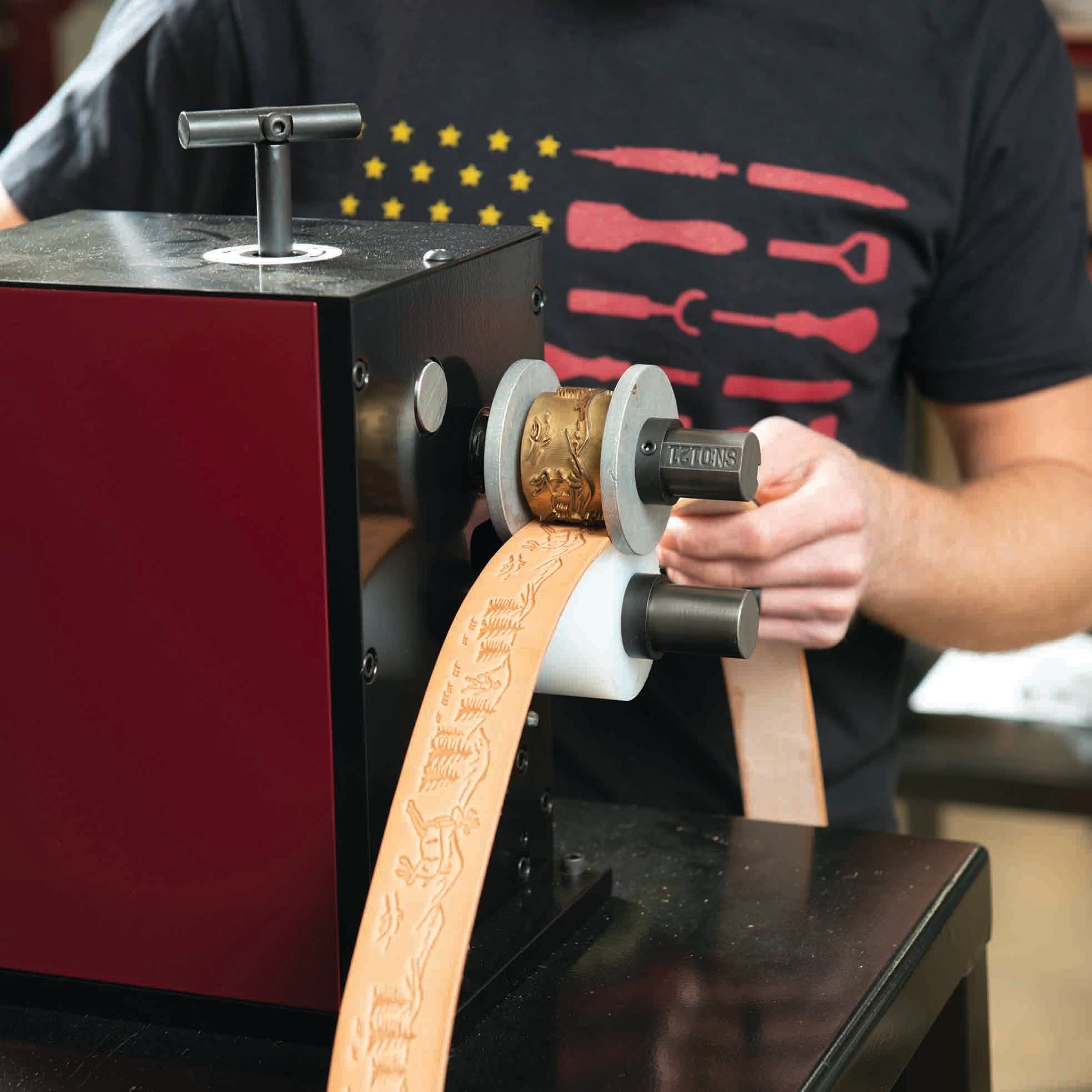

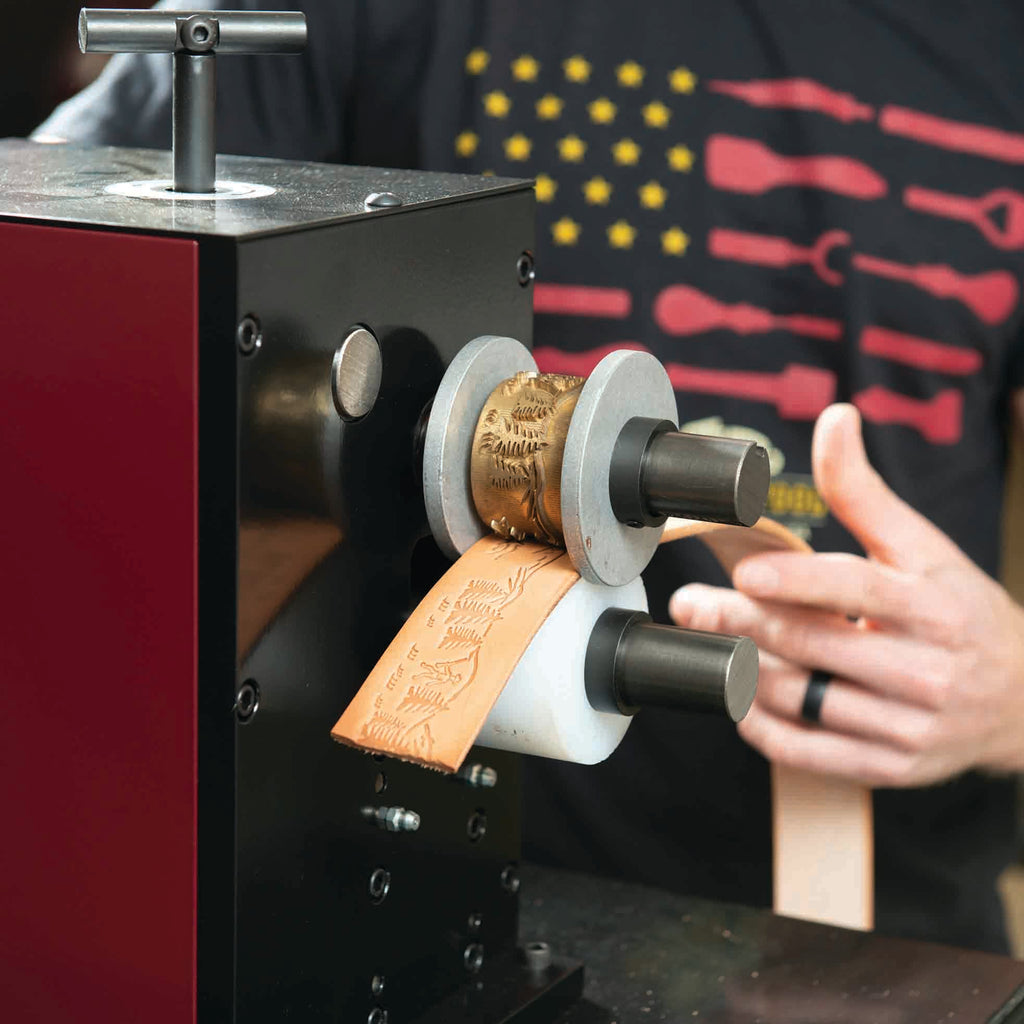

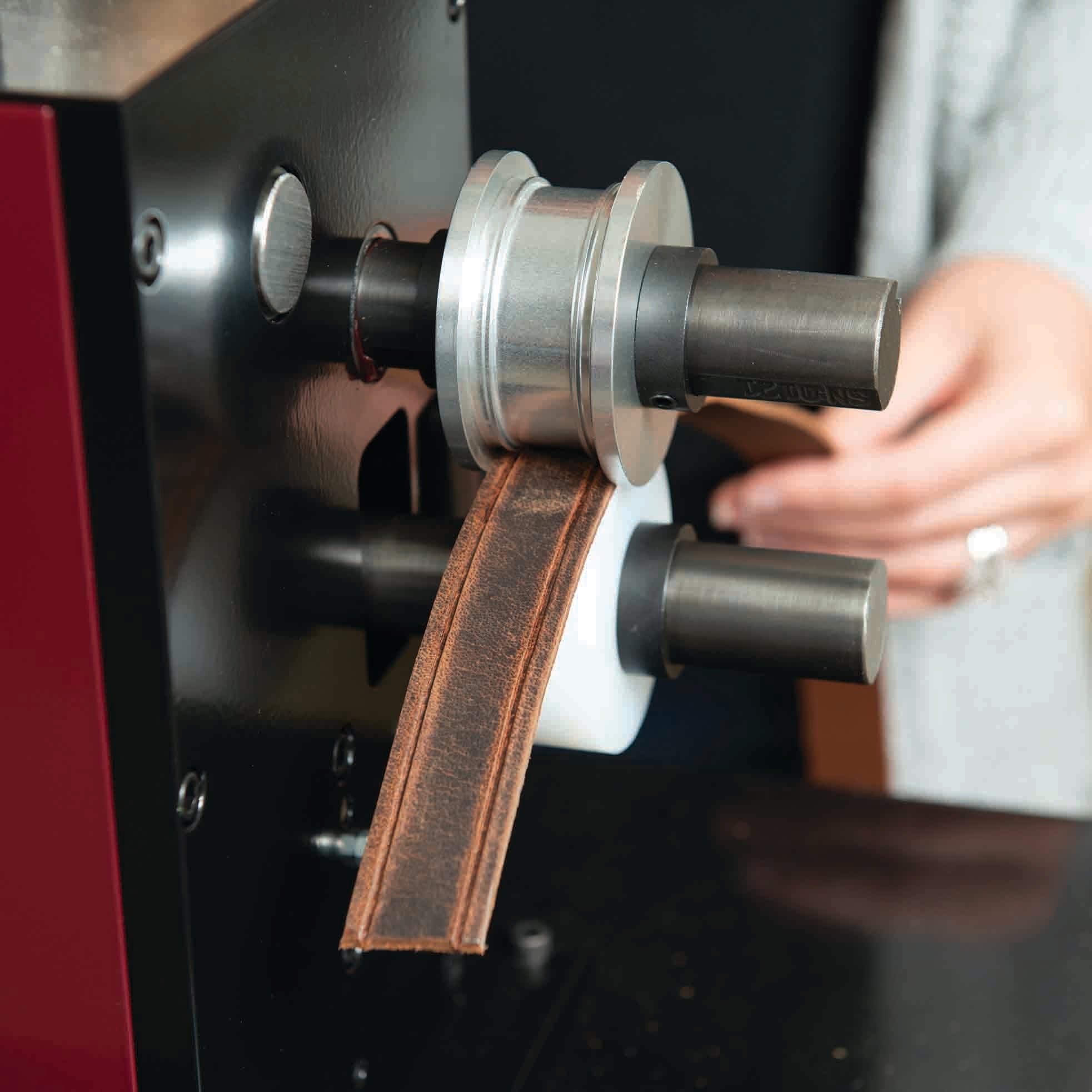

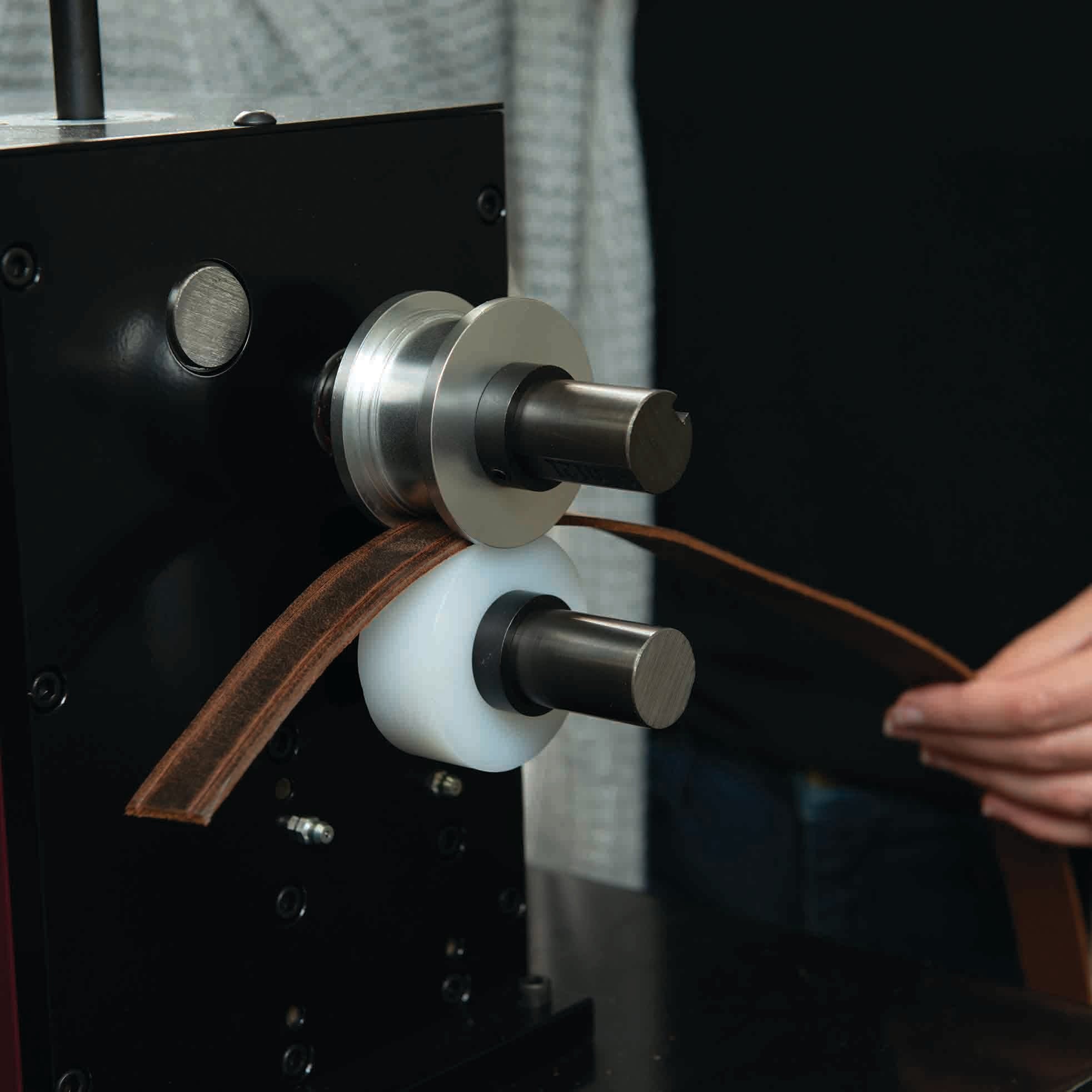

- Creasing leather and embossing leather is quick and easy with this handy machine
- Weighs approximately 81 lbs.
Additional Details
Add creasing and embossing details to your leather working projects with the Master Tool Creaser and Embosser. It combines easy set-up and operation with the ability to choose just the right creasing and/or embossing rolls for your needs. Creasing and embossing rolls are available separately in a variety of widths. This machine is for more than just straps though! You can add embossing details to the edges of larger projects as well, giving you even more versatility. Plus, it's easy to release embossing pressure by pushing the lever and returning to the exact same embossing pressure by pulling back on the lever. This is great when you want a clear area on your project. This machine's ingenious quick-change design makes it easy to use spacers to achieve a variety of different looks. Get ready to be inspired by all the possibilities!
Master Tool

Our Master Tool line is designed and crafted to provide a lifetime of dependable service to professional leatherworkers. Weaver Leather Supply is confident that any Master Tool is the last you'll ever need to buy. If not, we'll replace it at no charge.*
*Warranty is valid only on a tool that withstands normal use, following all applicable instructions. The warranty does not include normal maintenance such as resharpening. Weaver Leather Supply reserves the right to determine if a claim falls under the warranty.
Handcrafted by skilled craftspeople in the United States, this product features the finest materials, skilled American workmanship and finishing touches for years of dependable performance.

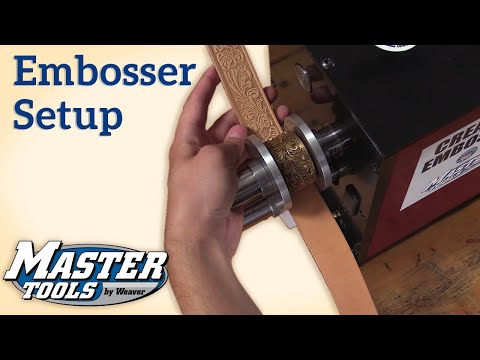

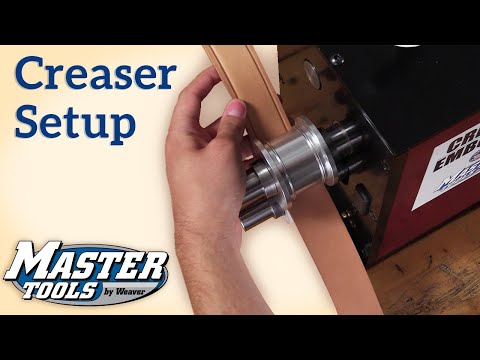

Set Up
Set Up
Accessories
Accessories
A 2" diameter White Bottom Roller (65-6771) is needed to use this machine with the rolls below for embossing.
Width of the white roll will depend on the width of the strap you want to emboss.

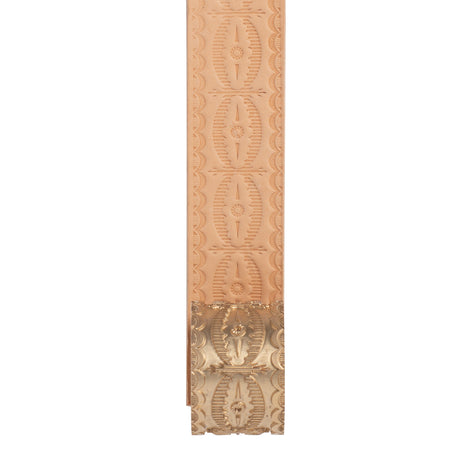

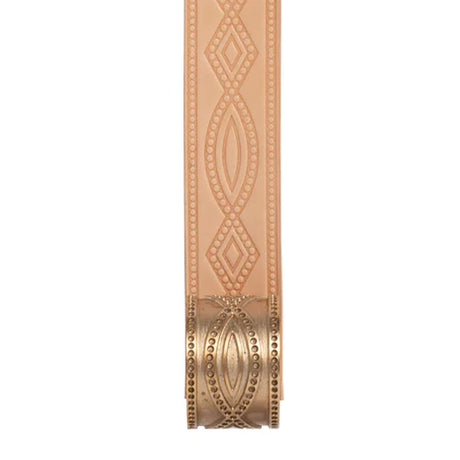

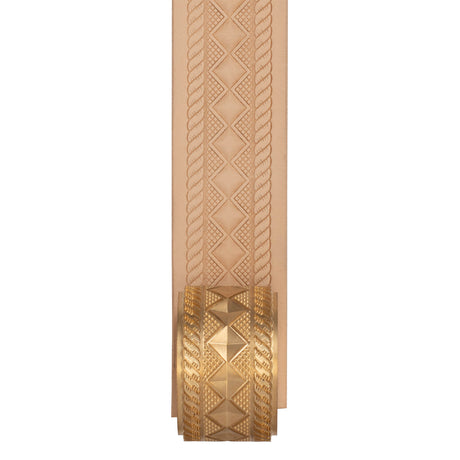

- 65-6739 Diamond/Rope Edge Embossing Roll, 1-1/8"

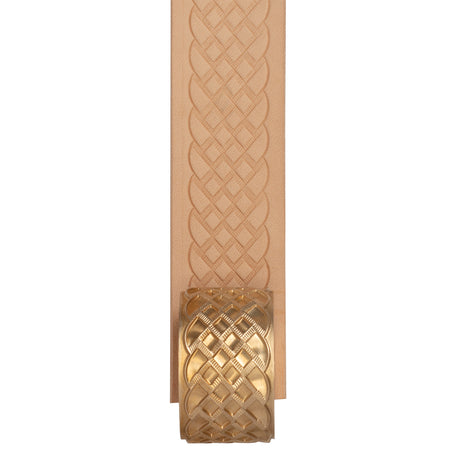

- 65-6740 Braid Embossing Roll, 1-1/16"

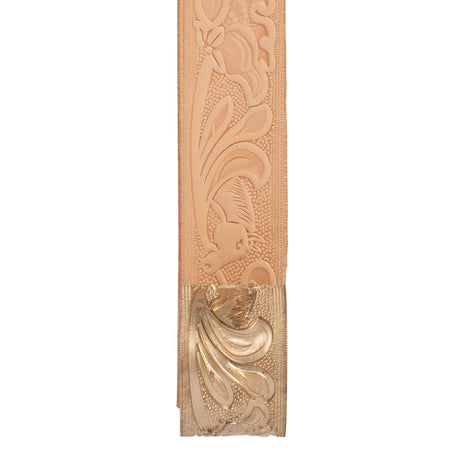

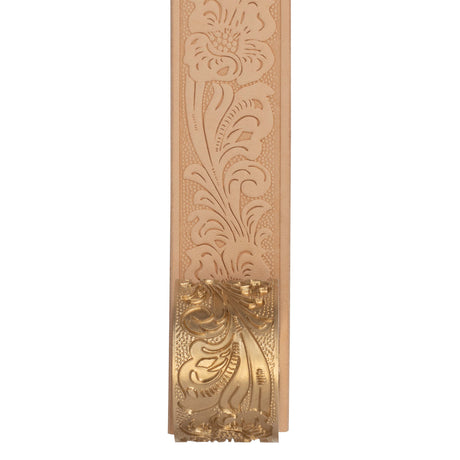

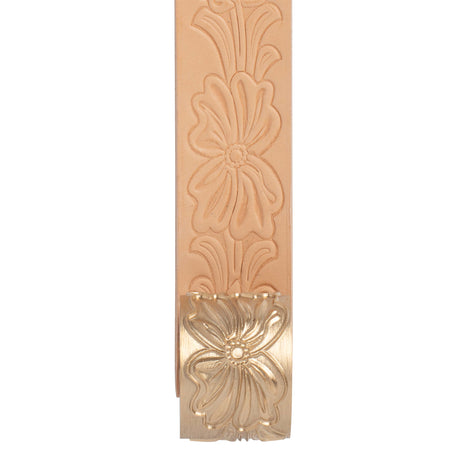

- 65-6741 Floral Embossing Roll, 1-1/8"

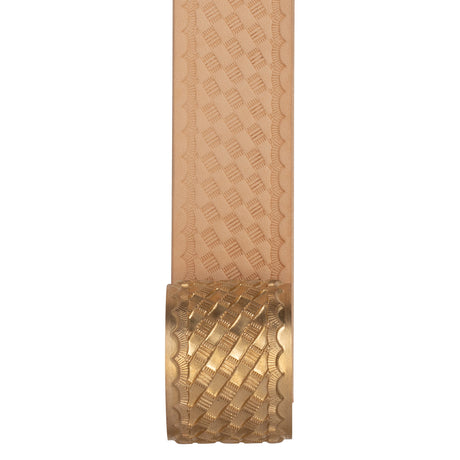

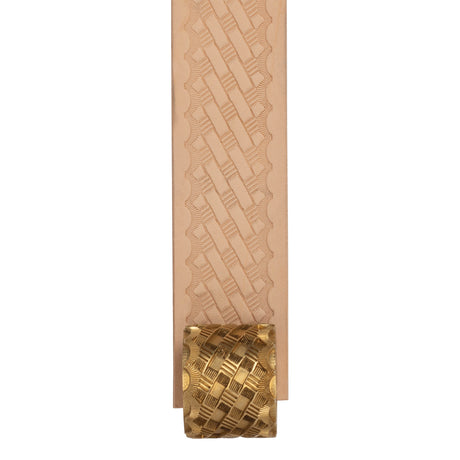

- 65-6742 Basketweave Embossing Roll, 1-3/8"

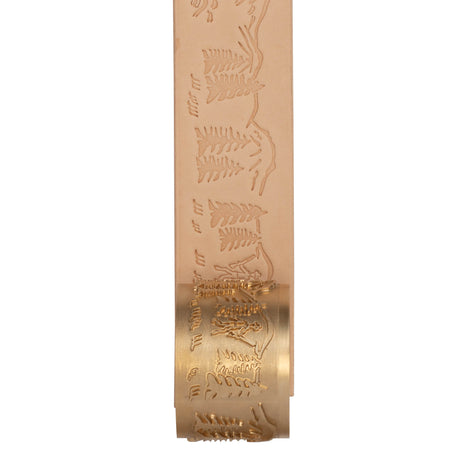

- 65-6743 Mountain/Buck Embossing Roll, 1-1/4"

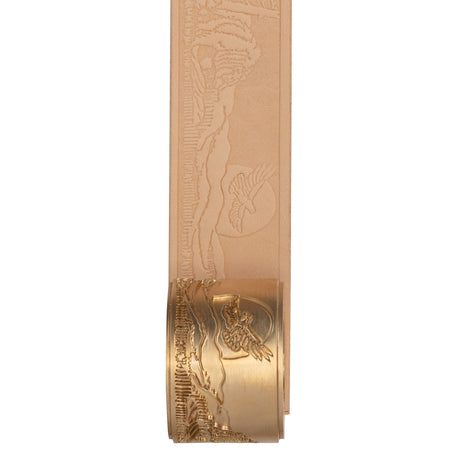

- 65-6744 Mountain/Elk/Bear/Eagle Embossing Roll, 1-1/4"
- 65-6771 2" White Bottom Roller, 5/8", 3/4", 1", 1-1/4" or 1-1/2"
- 65-6772 2-1/2" White Bottom Roller, 5/8", 3/4", 1", 1-1/4" or 1-1/2"
- 65-6774 Embossing Flange, 2" or 2-3/4", sold per pair
- 65-6775 1-1/4" Embossing Shim, .01" (1), .03" (2), .06" (3) or .125" (4), sold per pair



Chart Detailing White Bottom Rollers Necessary for Embossing
EMBOSSING/CREASING ROLLS | FLANGES | WHITE BOTTOM ROLL | SPACERS | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
2" DIAMETER | 2.5" DIAMETER | ||||||||||
Width | Outside Diameter | 2" Flange | 2.75" Flange | 1" Wide | 1.25" Wide | 1.5" Wide | 1" Wide | 1.25" Wide | 1.50" Wide | Spacers | |
Embossing Roll | 1" | 1.375" - 1.750" | X | X | X | ||||||
Embossing Roll | 1.25" | 1.375" - 1.750" | X | X | X | ||||||
Embossing Roll | 1.5" | 1.375" - 1.750" | X | X | X | ||||||
Embossing Roll | 1" | 1.813" - 2.188" | X | X | X | ||||||
Embossing Roll | 1.25" | 1.813" - 2.188" | X | X | X | ||||||
Embossing Roll | 1.5" | 1.813" - 2.188" | X | X | X | ||||||
Embossing Roll | 1" | 2.250" - 2.500" | X | X | X | ||||||
Embossing Roll | 1.25" | 2.250" - 2.500" | X | X | X | ||||||
Embossing Roll | 1.5" | 2.250" - 2.500" | X | X | X | ||||||
Embossing Roll | 1" | 2.563" - 2.813" | Custom | X | X | ||||||
Embossing Roll | 1.25" | 2.563" - 2.813" | Custom | X | X | ||||||
Embossing Roll | 1.5" | 2.563" - 2.813" | Custom | X | X | ||||||
Creasing Roll | 1" | 2" | NA | X | NA | ||||||
Creasing Roll | 1.25" | 2" | NA | X | N/A | ||||||
Creasing Roll | 1.5" | 2" | NA | X | N/A |
